52453-1
Fork / Spade Tongue Terminal, PLASTI-GRIP Series, 22 AWG, 16 AWG, 1.42 mm², M3.5, #6

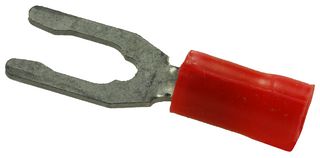

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No52453-1Copy
Newark Part No.01P0810
Product RangePLASTI-GRIP Series
Your Part Number
3,220 In Stock
Need more?
FREE Standard Delivery
on orders over $150
Priority Delivery available
order before 8pm EST
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $0.380 |
| 10+ | $0.318 |
| 25+ | $0.291 |
| 100+ | $0.272 |
| 500+ | $0.244 |
| 1000+ | $0.227 |
| 2500+ | $0.210 |
Price for:Each
Minimum: 1
Multiple: 1
$0.38
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No52453-1Copy
Newark Part No.01P0810
Product RangePLASTI-GRIP Series
Technical Datasheet
Product RangePLASTI-GRIP Series
Wire Size AWG Min22AWG
Wire Size (AWG)22AWG to 16AWG
Conductor Area CSA1.42mm²
Wire Size AWG Max16AWG
Stud Size - MetricM3.5
Stud Size - Imperial#6
Stud Size - Imperial6
Insulator MaterialVinyl
Insulator ColourRed
Terminal MaterialPhosphor Bronze
SVHCNo SVHC (04-Feb-2026)
Alternatives for 52453-1
5 Products Found
Product Overview
The 52453-1 is a Lug Terminal with red PVC insulator and tin-plated phosphor bronze contact. Straight orientation, 0.3 to 1.42mm² wire cross-section, standard closed red barrel, insulation support style, crimp termination method, M3.5 stud size, #6mm tab size and 22 to 16AWG wire size.
- 600V Maximum voltage rating
- Regular wire/cable type
- Solid or stranded wire/cable composition
- Spring spade shape
Applications
Industrial
Technical Specifications
Product Range
PLASTI-GRIP Series
Wire Size (AWG)
22AWG to 16AWG
Wire Size AWG Max
16AWG
Stud Size - Imperial
#6
Insulator Material
Vinyl
Terminal Material
Phosphor Bronze
Wire Size AWG Min
22AWG
Conductor Area CSA
1.42mm²
Stud Size - Metric
M3.5
Stud Size - Imperial
6
Insulator Colour
Red
SVHC
No SVHC (04-Feb-2026)
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
