5177985-6

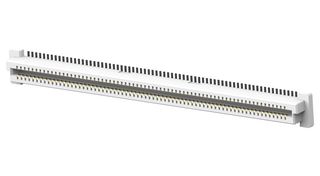

Mezzanine Connector, Receptacle, 0.8 mm, 2 Rows, 140 Contacts, Surface Mount, Copper Alloy
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No5177985-6Copy
Manufacturer Standard Lead Time9 weeks
Newark Part No.19R1449
Product RangeFH Series
Your Part Number
545 In Stock
Need more?
FREE Standard Delivery
on orders over $150
Priority Delivery available
order before 8pm EST
| Quantity | Price |
|---|---|
| 1+ | $9.530 |
| 5+ | $9.020 |
| 10+ | $8.420 |
| 25+ | $7.910 |
| 50+ | $7.580 |
| 100+ | $7.180 |
| 250+ | $6.840 |
Price for:Each
Minimum: 1
Multiple: 1
$9.53
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - AMP
Manufacturer Part No5177985-6Copy
Manufacturer Standard Lead Time9 weeks
Newark Part No.19R1449
Product RangeFH Series
Technical Datasheet
Mezzanine Connector TypeReceptacle
Pitch Spacing0.8mm
No. of Rows2Rows
No. of Contacts140Contacts
Connector MountingSurface Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Product RangeFH Series
SVHCNo SVHC (04-Feb-2026)
Product Overview
- Vertical, board-to-board, PCB mount, stackable receptacle (socket)
- 140 number of positions with 0.031inch centerline (pitch)
- 100VAC operating voltage
- 2Mohm insulation resistance
- 500VAC dielectric withstanding voltage (Max)
- Copper alloy contact base material with Tin PCB contact termination area plating material
- Gold contact mating area plating material
- Matte contact mating area plating material finish
- Polarization mating alignment type
- 5A contact current rating max
Technical Specifications
Mezzanine Connector Type
Receptacle
No. of Rows
2Rows
Connector Mounting
Surface Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (04-Feb-2026)
Pitch Spacing
0.8mm
No. of Contacts
140Contacts
Contact Material
Copper Alloy
Product Range
FH Series
