RA18-110F
Quick Disconnect Terminal, Sta-Kon 110 Series, Female Quick Disconnect, 2.8mm x 0.81mm

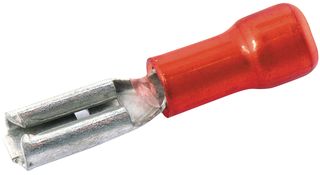

Image is for illustrative purposes only. Please refer to product description.
ManufacturerABB - THOMAS & BETTS
Manufacturer Part NoRA18-110F
Newark Part No.94F2971
Product RangeSta-Kon 110 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
| Quantity | Price |
|---|---|
| 1+ | $133.770 |
| 5+ | $130.940 |
| 10+ | $123.410 |
Price for:Pack of 100
Minimum: 1
Multiple: 1
$133.77
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerABB - THOMAS & BETTS
Manufacturer Part NoRA18-110F
Newark Part No.94F2971
Product RangeSta-Kon 110 Series
Technical Datasheet
Product RangeSta-Kon 110 Series
Terminal TypeFemale Quick Disconnect
Tab Size - Metric2.8mm x 0.81mm
Tab Size - Imperial0.11" x 0.032"
Wire Size AWG Min22AWG
Wire Size AWG Max18AWG
Insulator ColourRed
Conductor Area CSA-
Insulator MaterialNylon (Polyamide)
Terminal MaterialBrass
SVHCNo SVHC (15-Jan-2018)
Product Overview
The RA18-110F is a Sta-Kon® RA series Female Disconnect Terminal, made of brass with electro-tin plated finish, 600V rated voltage. The insulated nylon female-110 series disconnect terminal for wire range from 22 to 18AWG, 0.75-inch length.
- UL94V-2 Flammability rating
- Selectively annealed long barrel design
- 0.110 x 0.032" Tab size
- 105°C Temperature rating
Applications
Industrial
Technical Specifications
Product Range
Sta-Kon 110 Series
Tab Size - Metric
2.8mm x 0.81mm
Wire Size AWG Min
22AWG
Insulator Colour
Red
Insulator Material
Nylon (Polyamide)
SVHC
No SVHC (15-Jan-2018)
Terminal Type
Female Quick Disconnect
Tab Size - Imperial
0.11" x 0.032"
Wire Size AWG Max
18AWG
Conductor Area CSA
-
Terminal Material
Brass
Technical Docs (1)
Alternatives for RA18-110F
2 Products Found
Associated Products
3 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
