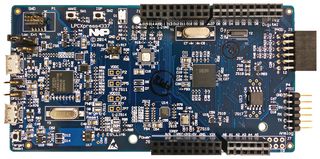

OM13070
Development Board, LPC4337, 32bit, ARM Cortex-M0, Cortex-M4F
Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Information
ManufacturerNXP
Manufacturer Part NoOM13070
Newark Part No.38Y7900
Technical Datasheet
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameLPCXpresso
Core ArchitectureARM
Core Sub-ArchitectureCortex-M0, Cortex-M4F
Silicon Core NumberLPC4337
Kit ContentsDevelopment Board LPCXpresso4337
Product Range-
SVHCTo Be Advised
Product Overview
OM13070 is a LPCXpresso4337 board that has been developed by NXP to enable evaluation of and prototyping with the LPC4300 family of MCUs and features the LPC4337 in its 100 PIN BGA package option. The LPCXpresso family of boards provides a powerful and flexible development system for NXP's Cortex-M MCUs.
- LPC4337 MCU runs up to 204MHz
- On-board high-speed USB based debug probe (ext probe support)
- Tri-color LED
- Target reset, ISP and WAKE buttons
- Expansion options based on Arduino UNO R3 and Pmod, plus additional expansion port pins
- On-board 1.8/3.3V or external power supply options
- On-board Ethernet PHY (output available at expansion connectors)
- High speed USB A/B connector
- 8Mb Macronix quad SPI flash
- UART, I2C and SPI port
Technical Specifications
Silicon Manufacturer
NXP
Silicon Family Name
LPCXpresso
Core Sub-Architecture
Cortex-M0, Cortex-M4F
Kit Contents
Development Board LPCXpresso4337
SVHC
To Be Advised
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
LPC4337
Product Range
-
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
