135-202FAG-J01
Thermistor, NTC, 2 kohm, 135 Series, 3468 K, Through Hole, DO-35, Axial Leaded

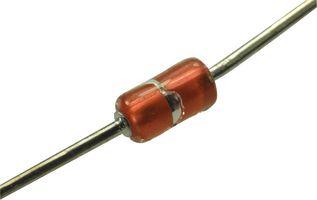

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHONEYWELL
Manufacturer Part No135-202FAG-J01
Newark Part No.10M5322
Product Range135 Series
Your Part Number
No Longer Available
Product Information
ManufacturerHONEYWELL
Manufacturer Part No135-202FAG-J01
Newark Part No.10M5322
Product Range135 Series
Technical Datasheet
Thermistor TypeNTC
Resistance (25°C)2kohm
Resistance Tolerance (25°C)± 10%
Thermistor MountingThrough Hole
Product Range135 Series
NTC MountingThrough Hole
Thermistor Case StyleDO-35
B-Constant3468K
Thermistor TerminalsAxial Leaded
B-Constant Tolerance-
NTC Case SizeDO-35
Thermal Time Constant (in Air)4s
Probe Material-
Probe Diameter-
Lead Length28.6mm
Operating Temperature Min-60°C
Operating Temperature Max300°C
Qualification-
Automotive Qualification Standard-
SVHCNo SVHC (07-Jul-2017)
Product Overview
The 135-202FAG-J01 is a hermetically-sealed Glass-encapsulated Chip with high temperature capability. The uniform dimensions are often suited for automated assembly. The tinned copper-clad, steel leads are both solderable and weldable. This rugged sensor designed for potential high-volume, cost-sensitive applications that demand enhanced reliability.
- Tinned copper-clad steel termination
- 4s Time constant (in air)
- 2.5mW/°C Dissipation constant
Applications
Consumer Electronics, Sensing & Instrumentation, Communications & Networking, Computers & Computer Peripherals, Automotive, Safety
Technical Specifications
Thermistor Type
NTC
Resistance Tolerance (25°C)
± 10%
Product Range
135 Series
Thermistor Case Style
DO-35
Thermistor Terminals
Axial Leaded
NTC Case Size
DO-35
Probe Material
-
Lead Length
28.6mm
Operating Temperature Max
300°C
Automotive Qualification Standard
-
Resistance (25°C)
2kohm
Thermistor Mounting
Through Hole
NTC Mounting
Through Hole
B-Constant
3468K
B-Constant Tolerance
-
Thermal Time Constant (in Air)
4s
Probe Diameter
-
Operating Temperature Min
-60°C
Qualification
-
SVHC
No SVHC (07-Jul-2017)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (07-Jul-2017)
