2202-1407

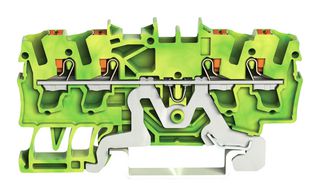

DIN Rail Mount Terminal Block, 4 Positions, 12 AWG, 12 AWG, 2.5 mm², Clamp, 24 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAGO
Manufacturer Part No2202-1407
Newark Part No.07AH1657
Product RangeTOPJOB S Series
Your Part Number
49 In Stock
Need more?
Same day shipping
Order before 8pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $13.100 |
| 10+ | $11.910 |
| 25+ | $10.650 |
| 50+ | $9.850 |
| 100+ | $9.200 |
| 250+ | $8.550 |
Price for:Each
Minimum: 1
Multiple: 1
$13.10
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWAGO
Manufacturer Part No2202-1407
Newark Part No.07AH1657
Product RangeTOPJOB S Series
No. of Positions4Positions
Wire Size AWG Min12AWG
Wire Size AWG Max12AWG
Conductor Area CSA2.5mm²
Wire Connection MethodClamp
Rated Current24A
Rated Voltage800V
No. of Levels1
Product RangeTOPJOB S Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
4-conductor ground terminal block with push-button. Certified by UL 6007, IEC 60079-0, CNCA-C23-01, TP TC 012/201, IEC 60079, EN 60947, C22.2, IEC 60947.
- With test port, side and center marking
- Connectable conductor materials is copper
- For DIN-rail 35 x 15 and 35 x 7.5
- Push-in CAGE CLAMP® connection technology
- Operating temperature range from -60 to +105°C (continuous)
- Green-yellow color polyamide (PA66) insulation
- Weight is 10.8g
- 2.5mm² nominal cross-section
- Total number of connection is 2 points
Technical Specifications
No. of Positions
4Positions
Wire Size AWG Max
12AWG
Wire Connection Method
Clamp
Rated Voltage
800V
Product Range
TOPJOB S Series
Wire Size AWG Min
12AWG
Conductor Area CSA
2.5mm²
Rated Current
24A
No. of Levels
1
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
