CPFE1000FI-28.
AC/DC Open Frame Power Supply (PSU), 1 Output, 1 kW, 90V AC to 265V AC, Adjustable, Fixed, 28 V

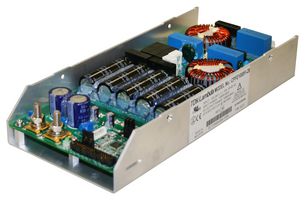

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTDK-LAMBDA
Manufacturer Part NoCPFE1000FI-28.
Newark Part No.78X4859
Product RangeCPFE1000FI Series
Available to Order
Manufacturer Standard Lead Time: 54 week(s)
| Quantity | Price |
|---|---|
| 1+ | $1,158.460 |
| 25+ | $1,056.550 |
| 50+ | $943.560 |
Price for:Each
Minimum: 1
Multiple: 1
$1,158.46
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTDK-LAMBDA
Manufacturer Part NoCPFE1000FI-28.
Newark Part No.78X4859
Product RangeCPFE1000FI Series
Power Supply ApplicationsITE
Output Power Max1.008kW
No. of Outputs1 Output
Power Rating (Forced Cooling)-
Power Rating (Convection Cooling)1kW
Input Voltage VAC90V AC to 265V AC
Power Supply Output TypeAdjustable, Fixed
Output Voltage - Output 128V
Output Current - Output 136A
Output Voltage - Output 2-
Output Current - Output 2-
Output Voltage - Output 3-
Input Voltage AC Min90V
Output Current - Output 3-
Input Voltage AC Max265V
Output Voltage - Output 4-
Output Current - Output 4-
Product RangeCPFE1000FI Series
SVHCHexahydromethylphthalic anhydride [1], Hexahydro-4-methylphthalic anhydride [2], Hexahydro-1-methylphthalic anhydride[3]
Technical Specifications
Power Supply Applications
ITE
No. of Outputs
1 Output
Power Rating (Convection Cooling)
1kW
Power Supply Output Type
Adjustable, Fixed
Output Current - Output 1
36A
Output Current - Output 2
-
Input Voltage AC Min
90V
Input Voltage AC Max
265V
Output Current - Output 4
-
SVHC
Hexahydromethylphthalic anhydride [1], Hexahydro-4-methylphthalic anhydride [2], Hexahydro-1-methylphthalic anhydride[3]
Output Power Max
1.008kW
Power Rating (Forced Cooling)
-
Input Voltage VAC
90V AC to 265V AC
Output Voltage - Output 1
28V
Output Voltage - Output 2
-
Output Voltage - Output 3
-
Output Current - Output 3
-
Output Voltage - Output 4
-
Product Range
CPFE1000FI Series
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Hexahydromethylphthalic anhydride [1], Hexahydro-4-methylphthalic anhydride [2], Hexahydro-1-methylphthalic anhydride[3]
