RE320-LF

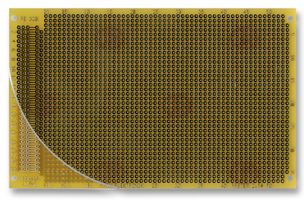

PROTOTYPING BRD, EUROCARD, 100.18X160.17
Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Information
ManufacturerROTH ELEKTRONIK
Manufacturer Part NoRE320-LFCopy
Newark Part No.26M2213
Technical Datasheet
Board TypeEurocard
Board MaterialEpoxy Glass Composite
Hole Diameter1mm
External Height100mm
External Width160mm
Board Thickness1.5mm
SVHCNo SVHC (27-Jun-2024)
Product Overview
- FR4 1.50mm, epoxy fiber-glass PCB Eurocard
- Single-sided is 35µm Cu
- Hole spacing is 2.54 x 2.54mm
- 37 x 53 soldering pads 2.20mm Ø
- Hole diameter is 1.00mm
- Connector 32/64/96-channel DIN 41612 type C
- Size is 3.93inch x 6.29inch
Technical Specifications
Board Type
Eurocard
Hole Diameter
1mm
External Width
160mm
SVHC
No SVHC (27-Jun-2024)
Board Material
Epoxy Glass Composite
External Height
100mm
Board Thickness
1.5mm
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
