PHNTRAYNOH

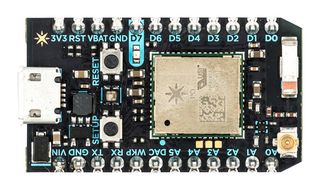

Development Board, Photon, P-zero Module, IoT, WiFi Development, No Pin Headers
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | PARTICLE |
|---|---|
| Manufacturer Part No | PHNTRAYNOHCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Newark Part No. | 62AC5484 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $1,346.480 |
Price for:Each
Minimum: 1
Multiple: 1
$1,346.48
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | PARTICLE |
|---|---|
| Manufacturer Part No | PHNTRAYNOHCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Newark Part No. | 62AC5484 |
| Technical Datasheet | |
| Silicon Manufacturer | USI |
| Silicon Core Number | WM-N-BM-09-S |
| Application Sub Type | Internet of Things (IoT) |
| Kit Contents | Development Board WM-N-BM-09-S |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview
Internet of Things hardware development kit provides everything user needs to build a connected product. Particle combines a powerful ARM Cortex M3 micro-controller with a Broadcom Wi-Fi chip in a tiny thumbnail-sized module called the PØ (P-zero). Particle adds a rock solid 3.3VDC SMPS power supply, RF and user interface components to the PØ on a small single-sided PCB called the Photon. The design is open source so when you're ready to integrate the Photon into your product, you can.
- PØ Wi-Fi module (802.11b/g/n Wi-Fi, 1MB flash, 128KB RAM)
- On-board RGB status LED (ext. drive provided)
- 18 mixed-signal GPIO and advanced peripherals
- Open source design
- Real-time operating system (FreeRTOS)
- Soft AP setup
- Power to photon is supplied via on-board USB Micro B connector or directly via VIN pin
- Supplied without headers
Technical Specifications
| Silicon Manufacturer | USI |
|---|---|
| Application Sub Type | Internet of Things (IoT) |
| Product Range | - |
| Silicon Core Number | WM-N-BM-09-S |
|---|---|
| Kit Contents | Development Board WM-N-BM-09-S |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| US ECCN: | Unknown |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
