MJD32CT4G.

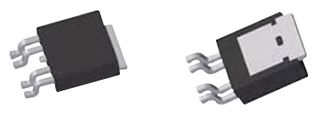

Bipolar (BJT) Single Transistor, PNP, 100 V, 3 A, 15 W, TO-252 (DPAK), Surface Mount
Image is for illustrative purposes only. Please refer to product description.
ManufacturerONSEMI
Manufacturer Part NoMJD32CT4G.Copy
Newark Part No.26AC2120
Product RangeMJxxxx Series
Your Part Number
Available to Order
Delivery estimated post order confirmations.You will be charged on dispatch.
| Quantity | Price |
|---|---|
| 2500+ | $0.355 |
| 7500+ | $0.349 |
| 12500+ | $0.329 |
Price for:Each (Supplied on Full Reel)
Minimum: 2500
Multiple: 2500
$887.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerONSEMI
Manufacturer Part NoMJD32CT4G.Copy
Newark Part No.26AC2120
Product RangeMJxxxx Series
Transistor PolarityPNP
Collector Emitter Voltage Max100V
Collector Emitter Voltage V(br)ceo100V
DC Collector Current3A
Continuous Collector Current3A
Power Dissipation15W
Power Dissipation Pd15W
Transistor MountingSurface Mount
DC Current Gain hFE10hFE
No. of Pins4Pins
Transistor Case StyleTO-252 (DPAK)
Transition Frequency3MHz
DC Current Gain hFE Min10hFE
Operating Temperature Max150°C
Qualification-
Product RangeMJxxxx Series
SVHCLead (25-Jun-2025)
Technical Specifications
Transistor Polarity
PNP
Collector Emitter Voltage V(br)ceo
100V
Continuous Collector Current
3A
Power Dissipation Pd
15W
DC Current Gain hFE
10hFE
Transistor Case Style
TO-252 (DPAK)
DC Current Gain hFE Min
10hFE
Qualification
-
MSL
MSL 1 - Unlimited
Collector Emitter Voltage Max
100V
DC Collector Current
3A
Power Dissipation
15W
Transistor Mounting
Surface Mount
No. of Pins
4Pins
Transition Frequency
3MHz
Operating Temperature Max
150°C
Product Range
MJxxxx Series
SVHC
Lead (25-Jun-2025)
Technical Docs (2)
Alternatives for MJD32CT4G.
3 Products Found
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (25-Jun-2025)
