580-M15-203L001
MICRO-D SUB CONN, RCPT, 15POS/SOLDER CUP

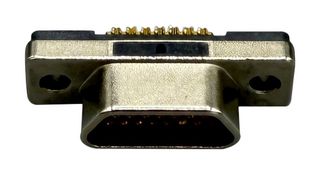

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNORCOMP
Manufacturer Part No580-M15-203L001
Newark Part No.31AJ9725
Product Range580 M Series
Your Part Number
20 In Stock
Need more?
Same day shipping
Order before 8pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $40.000 |
| 5+ | $37.380 |
| 10+ | $34.750 |
| 25+ | $32.900 |
| 50+ | $30.480 |
| 100+ | $29.260 |
Price for:Each
Minimum: 1
Multiple: 1
$40.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerNORCOMP
Manufacturer Part No580-M15-203L001
Newark Part No.31AJ9725
Product Range580 M Series
D Sub Connector TypeMicro D
Product Range580 M Series
No. of Contacts15Contacts
D Sub Shell Size-
Contact Termination TypeSolder Cup
Connector MountingPanel Mount
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Connector Body MaterialZinc Alloy Body
SVHCLead (27-Jun-2024)
Product Overview
580-M15-203L001 is a 580-M series female solder cup.
- Standard density (15 pos)
- Non-removable machined contacts for high reliability
- 2A contact rating, 60V DC rated voltage
- Zinc alloy, nickel plating shell
- LCP, UL94 V-0 (260°C process temp) insulator
- Machined - brass contact
- 15µ" gold contact plating
- Operating temperature range from -40°C to +125°C
- 1000Mohm min insulation resistance
- 30mohm max contact resistance
Technical Specifications
D Sub Connector Type
Micro D
Product Range
580 M Series
D Sub Shell Size
-
Connector Mounting
Panel Mount
Contact Plating
Gold Plated Contacts
SVHC
Lead (27-Jun-2024)
Gender
Receptacle
No. of Contacts
15Contacts
Contact Termination Type
Solder Cup
Contact Material
Brass
Connector Body Material
Zinc Alloy Body
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (27-Jun-2024)
