PQU650-12P
AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 650W @ 300LFM, 450 W, 90V AC to 264V AC

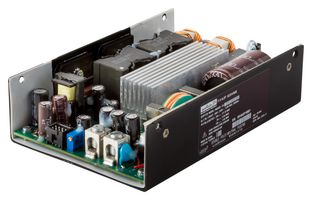

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoPQU650-12P
Newark Part No.61AK7400
Product RangePQU650 Series
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 56 week(s)
| Quantity | Price |
|---|---|
| 100+ | $214.110 |
Price for:Each
Minimum: 120
Multiple: 20
$25,693.20
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMURATA POWER SOLUTIONS
Manufacturer Part NoPQU650-12P
Newark Part No.61AK7400
Product RangePQU650 Series
Technical Datasheet
Power Supply ApplicationsITE
No. of Outputs1 Output
Power Rating (Forced Cooling)650W @ 300LFM
Power Rating (Convection Cooling)450W
Input Voltage VAC90V AC to 264V AC
Power Supply Output TypeFixed
Output Voltage - Output 112V
Output Current - Output 154.2A
Output Voltage - Output 2-
Output Current - Output 2-
Output Voltage - Output 3-
Output Current - Output 3-
Output Voltage - Output 4-
Output Current - Output 4-
Product RangePQU650 Series
SVHCNo SVHC (25-Jun-2025)
Product Overview
PQU650-12P is a PQU650 series 650W 4" x 6" AC-DC U-channel power supply converter. The compact form factor offers an impressive 450W of natural convection cooled power at +50°C. Provision of an adjustable main output, plus auxiliary/standby and fan outputs, will enable this technically superior solution to be deployed across multiple market sectors, complemented by safety certification applicable to audio/video/communication and ITE standards. Typical applications are industrial, telecommunications and datacoms, test equipment, ATE, visual signage, broadcast, PoE.
- Voltage (+15%)² adjustment of main V1 output
- 5VAux/standby and 12V fan outputs
- 4" x 6" industry standard footprint, U channel form factor with industry standard mounting footprint
- Choice of screwed or pluggable connector variants
- High efficiency of 95% typical at 50% load
- Very low no load standby power consumption
- True zero load operation of the main (V1) output; no minimum load requirements
- Universal AC input; active PFC; EN61000-3-2 class A
- Parallel/redundant capable; droop current share as standard feature
- IEC62368-1 certified
Technical Specifications
Power Supply Applications
ITE
Power Rating (Forced Cooling)
650W @ 300LFM
Input Voltage VAC
90V AC to 264V AC
Output Voltage - Output 1
12V
Output Voltage - Output 2
-
Output Voltage - Output 3
-
Output Voltage - Output 4
-
Product Range
PQU650 Series
No. of Outputs
1 Output
Power Rating (Convection Cooling)
450W
Power Supply Output Type
Fixed
Output Current - Output 1
54.2A
Output Current - Output 2
-
Output Current - Output 3
-
Output Current - Output 4
-
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
