172253-3112

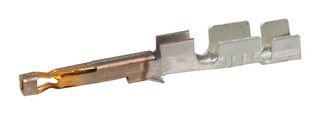

Contact, Ultra-Fit 172253 Series, Socket, Crimp, 20 AWG, Gold Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No172253-3112
Newark Part No.77AC7418
Product RangeUltra-Fit 172253 Series
Your Part Number
No Longer Available
Product Information
ManufacturerMOLEX
Manufacturer Part No172253-3112
Newark Part No.77AC7418
Product RangeUltra-Fit 172253 Series
Technical Datasheet
Product RangeUltra-Fit 172253 Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max20AWG
Contact PlatingGold Plated Contacts
For Use WithMOLEX Ultra-Fit 172256, 172258, 172260 & 172262 Series Receptacle Housings
Wire Size AWG Min22AWG
Contact MaterialCopper Alloy
SVHCNo SVHC (25-Jun-2020)
Technical Specifications
Product Range
Ultra-Fit 172253 Series
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
22AWG
SVHC
No SVHC (25-Jun-2020)
Contact Gender
Socket
Wire Size AWG Max
20AWG
For Use With
MOLEX Ultra-Fit 172256, 172258, 172260 & 172262 Series Receptacle Housings
Contact Material
Copper Alloy
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2020)
