| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAXREFDES131#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Newark Part No. | 06AC6095 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | $79.110 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAXREFDES131#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Newark Part No. | 06AC6095 |
| Technical Datasheet | |
| Silicon Manufacturer | - |
| Silicon Core Number | AMG8833, DS28E17 |
| Kit Application Type | Sensor |
| Application Sub Type | Internet of Things (IoT) |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Ref Design Board |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

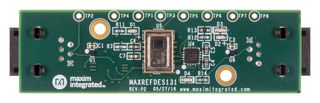

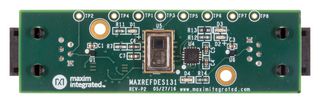

The MAXREFDES131# is a 1-wire Grid-EYE sensor. It is a sensing solution featuring the Panasonic AMG8833 Grid-EYE® and the 1-Wire® bus enabled by the DS28E17. The system enables presence sensing, people counting and gestures while tethered up to 100m along the 1-wire bus. The board features RJ-11 connectors and convenient mounting holes for quick evaluation and implementation. Typical application includes building automation, people counting, lighting control, presence sensing and gestures.
- Example source code for interfacing with MAXREFDES131 is available for Arm mbed, Arduino platforms
- Design conveniently works with MAXREFDES132 a hardware 1-wire shield
- Demonstration GUI allows for visual feedback of 10 daisy-chained MAXREFDES131 1-wire GridEYE sensors
- Building automation; People counting; Lighting control; Presence sensing; Gestures
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Silicon Manufacturer | - |
|---|---|
| Kit Application Type | Sensor |
| Core Architecture | - |
| Silicon Family Name | - |
| Product Range | - |
| Silicon Core Number | AMG8833, DS28E17 |
|---|---|
| Application Sub Type | Internet of Things (IoT) |
| Core Sub-Architecture | - |
| Kit Contents | Ref Design Board |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Associated Products
6 Products Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Proposition 65 |
