G125-FW10150L94
Cable Assembly, Crimp Receptacle to Free End, 5.9 ", 150 mm, Gecko G125 Series, White

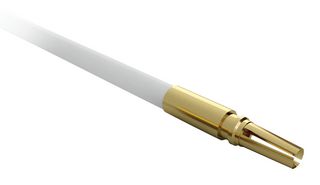

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARWIN
Manufacturer Part NoG125-FW10150L94
Newark Part No.75X9570
Product RangeGecko G125 Series
Technical Datasheet
No Longer Available
Product Information
ManufacturerHARWIN
Manufacturer Part NoG125-FW10150L94
Newark Part No.75X9570
Product RangeGecko G125 Series
Technical Datasheet
Connector to ConnectorCrimp Receptacle to Free End
Cable Length - Imperial5.9"
Cable Length - Metric150mm
Product RangeGecko G125 Series
Jacket ColorWhite
SVHCLead
Alternatives for G125-FW10150L94
1 Product Found
Product Overview
The G125-FW10150L94 is a 150mm white audio/video Cable Assembly with female crimp socket to loose cut end connection. It has 4-finger beryllium copper contact on a female connector. Features 1.25mm pitch high-reliability gecko connector system. It is manufactured with the G125-0010005 crimp contacts. It is suitable for use with crimp housings G125-204 series.
- Ready for assembling to housings
- Crimp barrel meets all crimp guidelines and standards
- 2A Current capacity, resists high vibration and shock
- -65 to 150˚C Withstands extremes of temperature range
Technical Specifications
Connector to Connector
Crimp Receptacle to Free End
Cable Length - Metric
150mm
Jacket Color
White
Cable Length - Imperial
5.9"
Product Range
Gecko G125 Series
SVHC
Lead
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
