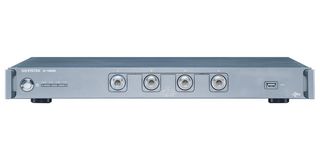

C-1200

C-1200 is an OBT (One Box Tester) multi-channel LoRa tester that incorporates LoRa TX and RX tests. In terms of LoRa transmitter, C-1200 provides tests including spectrum analysis, time domain, FEI (Frequency Error Indicator), and TOA (Time-On-Air). With respect to LoRa receiver, tests include sensitivity, BER (Bit Error Rate), and PER (Packet Error Rate). In addition to Sub-GHz, C-1200 also supports the 2.4 GHz bandwidth and the FSK signal test. Users can also edit the transmitted payload by themselves. When receiving data, the formats include binary/HEX, and ASCII code which allow data transmission results to be easily confirmed. In addition to the signalling test of the finished product, C-1201 is a transfer box connecting C-1200 to LoRa module that directly controls the DUT to perform non-signalling tests on semi-finished products through UART/SPI/I2C interfaces.

• 4 sets of RF T/Rx channels are ideal for pipeline production process
• Dedicated test application software with full functionalities
• Spectrum display, time domain display, FEI and TOA functions
