| Fabricante | SIMPSON |
|---|---|
| No. Parte Fabricante | 12681 (444-2)Copiar |
| Tiempo de entrega estándar del fabricante | 7 semanas |
| No. Parte Newark | 89F2214 |
| Su número de pieza | |
| Hoja de datos técnicos |
| Cantidad | Precio |
|---|---|
| 1+ | $2,441.510 |
Información del producto
| Fabricante | SIMPSON |
|---|---|
| No. Parte Fabricante | 12681 (444-2)Copiar |
| Tiempo de entrega estándar del fabricante | 7 semanas |
| No. Parte Newark | 89F2214 |
| Hoja de datos técnicos | |
| Conexión de Alambre | 4-Wire |
| Resistencia, Rango de Medida | 0.02ohm, 0.2ohm, 2ohm, 20ohm |
| Resolución (ohm) | 0.001ohm |
| Corriente de Prueba | 5mA |
| Precisión | 0.05% |
| Altura Externa | 68mm |
| Anchura Externa | 228mm |
| Profundidad Externa | 213mm |
| Peso | 3lb |
| Rango de Producto | - |
| Sustancia Extremadamente Preocupante (SVHC) | To Be Advised |
Resumen del producto

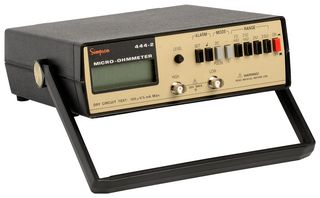

Micro-Ohmmeter measures resistance from 50 micro-ohm to 20 ohms. It measures using an extremely small test voltage (100 microvolt maximum) and a four wire measurement technique. The resistance reading is indicated on a 4- 1/2 digit LCD display using one of two measuring modes: An automatic AC measurement mode or a manual DC measurement mode. By limiting the test voltage of the Model 444-2 to only 100 micro volts the instrument will not "punch through" contamination or corrosion. An audible tone can be used to indicate resistance values below any selected reading. The Model 444-2 has a universal power input range of 85Vac to 250Vac and incorporates a self-contained rechargeable Ni-Cad battery for field use
- 20,000 Count 4 1/2-Digit LCD
- 2 Measurement Methods: AC Pulse and DC Polarity Switching
- Punch-Through Prevention by 100 MicroV Max. Test Voltage
- User-Adjustable, Low-Resistance Alarm
- AC Test Mode Cancels Offset Voltages and Thermocouple Effects
- Includes Ni-Cad Battery for Field Use and Test Leads
- Extended Battery Life, 10 Hours Typical
Especificaciones técnicas
| Conexión de Alambre | 4-Wire |
|---|---|
| Resolución (ohm) | 0.001ohm |
| Precisión | 0.05% |
| Anchura Externa | 228mm |
| Peso | 3lb |
| Sustancia Extremadamente Preocupante (SVHC) | To Be Advised |
| Resistencia, Rango de Medida | 0.02ohm, 0.2ohm, 2ohm, 20ohm |
|---|---|
| Corriente de Prueba | 5mA |
| Altura Externa | 68mm |
| Profundidad Externa | 213mm |
| Rango de Producto | - |
Documentos técnicos (2)
Productos relacionados
2 productos encontrados
Legislación y medioambiente
| US ECCN: | 3A992 |
|---|---|
| EU ECCN: | Unknown |
| Conforme a RoHS: | No |
| Cumplimiento de ftalatos con respecto a la restricción de sustancias peligrosas (RoHS): | No |
| Valor de sustancia extremadamente preocupante: | To Be Advised |
| Descargue el certificado de cumplimiento del producto | Certificado de conformidad del producto |
