B82462A4332M000
Surface Mount Power Inductor, B82462A4 Series, 3.3 H, 20%, Unshielded, 0.06 ohm, 2 A RoHS Compliant: Yes

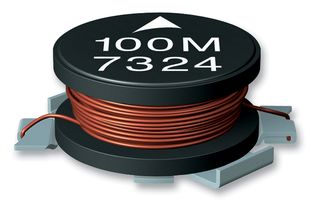

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTDK
Manufacturer Part NoB82462A4332M000
Newark Part No.
Re-Reel12P7286
Cut Tape12P7286
Product RangeB82462A4 Series
Your Part Number
564 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 8pm EST standard shipping
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 5 | $1.190 | $5.95 |
| Total Price | $5.95 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | $1.190 |
| 10+ | $0.996 |
| 25+ | $0.947 |
| 50+ | $0.897 |
| 100+ | $0.848 |
| 250+ | $0.797 |
| 1000+ | $0.746 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTDK
Manufacturer Part NoB82462A4332M000
Newark Part No.
Re-Reel12P7286
Cut Tape12P7286
Product RangeB82462A4 Series
Technical Datasheet
Inductance3.3µH
RMS Current (Irms)2A
Inductor ConstructionUnshielded
Saturation Current (Isat)3.2A
Product RangeB82462A4 Series
Power Inductor Case6mm x 6mm x 3mm
Inductor Case / Package-
DC Resistance Max0.06ohm
Inductance Tolerance± 20%
Product Length6mm
Product Width6mm
Product Height3mm
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Inductance
3.3µH
Inductor Construction
Unshielded
Product Range
B82462A4 Series
Inductor Case / Package
-
Inductance Tolerance
± 20%
Product Width
6mm
SVHC
No SVHC (25-Jun-2025)
RMS Current (Irms)
2A
Saturation Current (Isat)
3.2A
Power Inductor Case
6mm x 6mm x 3mm
DC Resistance Max
0.06ohm
Product Length
6mm
Product Height
3mm
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
