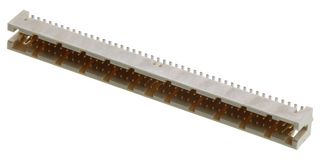

87409-145LF

87409-145LF is a RIB-CAGE™ pitch board-to-board connector system for extreme applications. It provides optimal precision and reliability at a competitive commercial cost. This connector meet high-performance standards for use in applications with shock and vibration. The versatile Rib-Cage™ system includes dual-row, pin and-socket connectors for right-angle and mezzanine connections between printed circuit boards (PCB) or flexible printed circuits (FPC). Target markets/application includes handheld test and diagnostic equipment, outdoor test and measurement devices, military communications equipment, security systems and access control, point-of-sale terminals, and electronic sub-assemblies used in conjunction with fans, motors and mechanical devices.

• IEC 60512 test 6d certified
• Multiple stack height options offer flexibility for mezzanine connection designs
• Polarization prevents mis-mating
• Multiple PCB positioning and PCB attachment options suit customer assembly requirements
• Glass-filled thermoplastic, UL94V-O, black or natural color housing
• Contact base metal, PCB receptacles copper alloy, high spring
• 200 mating cycles contact durability
• 50000Mohm minimum initial insulation resistance
• 800VAC, RMS at 60Hz withstanding voltage
• Temperature range from -55°C to 130°C
