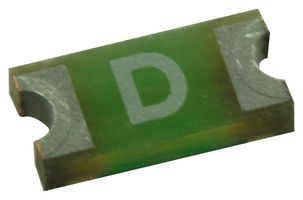

0466.250NR
Fuse, Surface Mount, 250 mA, Very Fast Acting, 125 V, 125 V, 1206 [3216 Metric], 466 Series
Precisa de mais?
| Quantidade | Preço |
|---|---|
| 1+ | $ 1.010 |
| 25+ | $ 0.793 |
| 50+ | $ 0.674 |
| 100+ | $ 0.629 |
| 250+ | $ 0.575 |
| 500+ | $ 0.537 |
| 1000+ | $ 0.503 |
Informação do produto
Descrição geral do produto
The 0466.250NR is a 0.25A/125V very fast acting surface mount Fuse with advanced high temperature substrate body, 100% tin plated over nickel over copper termination and conformal coating element cover. The 466-series small (1206 size) thin-film device is designed for secondary protection of circuits used in space constrained applications. Alloy-based element construction provides superior inrush withstand characteristics (I²t) over ceramic or glass-based 1206 chip fuse products. Flat top surface for pick-and-place operations. Product is marked on top surface with code to allow amperage rating identification without testing. Low profile for height sensitive applications. This fuse is compatible with lead-free solders and higher temperature profiles.
- Alloy based element construction
- Flat top surface for pick-and-place operations
- Low profile for height sensitive applications
- 207.01mV Nominal voltage drop
- 0.0518W Nominal power dissipation
- 0.691Ω Nominal cold resistance
- -55 to 90°C Operating temperature range
Aplicações
Safety, Portable Devices, Consumer Electronics, Computers & Computer Peripherals
Especificações Técnicas
250mA
125V
1206 [3216 Metric]
50A
No SVHC (25-Jun-2020)
Very Fast Acting
125V
466 Series
50A
Documentação técnica (2)
Alternativas para 0466.250NR
4 produtos encontrados
Produtos associados
3 produtos encontrados
Legislação e Ambiente
RoHS
RoHS
Certificado de conformidade do produto
WARNINGProposition 65
