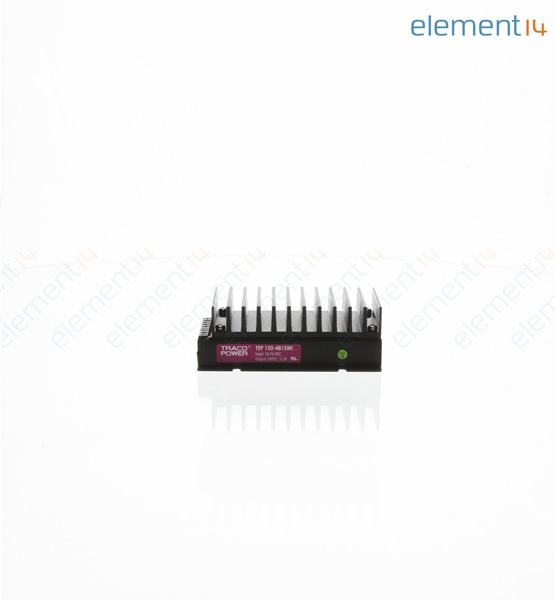

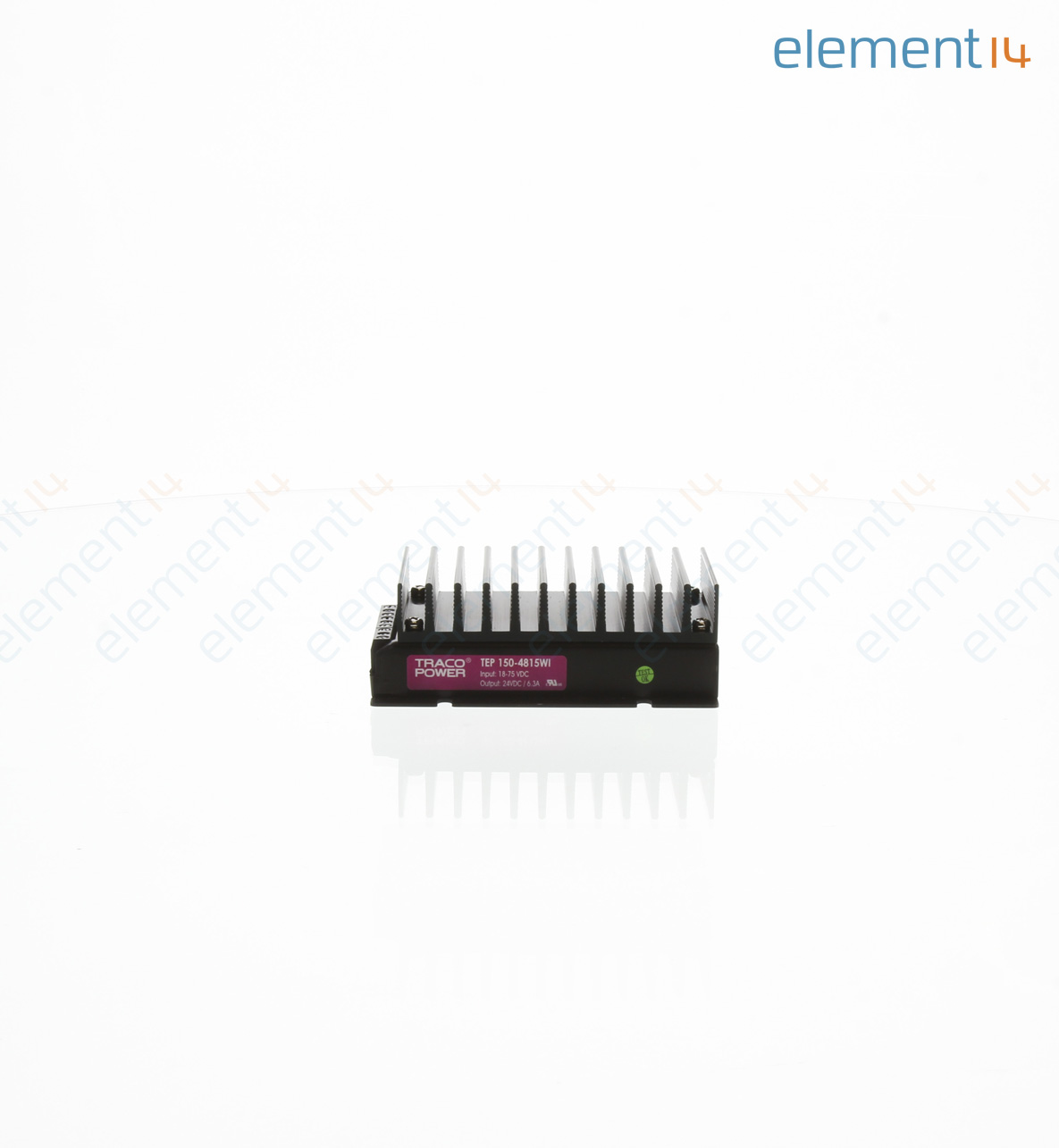

TEP 150-4815WI
Isolated Chassis Mount DC/DC Converter, Railway, 4:1, 150 W, 1 Output, 24 V, 6.3 A
- Manufacturer:
- TRACO POWER TRACO POWER
- Manufacturer Part No:
- TEP 150-4815WI
- Newark Part No.:
- 51R5027
- Product Range
- TEP 150WI
- Technical Datasheet:
- TEP 150-4815WI Datasheet
Product Range Selector (TEP 150WI)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Railway
- :
- 4:1
- :
- 1 Output
- :
- 150W
- :
- 24V
- :
- 6.3A
- :
- -
- :
- -
- :
- -
- :
- 2.25kV
- :
- Module
- :
- IEC, UL
- :
- 18V
- :
- 48V
- :
- 75V
- :
- Panel
- :
- Fixed
- :
- 65mm
- :
- 35.7mm
- :
- 98mm
- :
- TEP 150WI
Technical Documents (7)
Product Overview
The TEP 150WI series isolated DC/DC Converter Module features a wide input range, adjustable output voltage and constant current mode output limit. The modules have originally been designed for harsh industrial environment. High EMC immunity against surge, burst, radiated and conducted disturbances and the shock/vibration and thermal shock resistance make them very popular for stringent requirements. At 100% load the current characteristics goes from constant voltage to constant current what makes the units also suitable for battery charger applications. With protection against over-temperature, overload, short-circuit, reverse input, over-voltage and input undervoltage lockout they are hard to destroy.
- Under-voltage lockout
- Input reverse protection
- Adjustable output voltage
- Reverse input protection
- Over-temperature protection
- Easy chassis and wall mounting
- Input to output basic Insulation
- Constant current output characteristic
- Shielded metal case with screw terminals
- Optional with input filter to meet EN55022 class B
- 87% typical Efficiency
- 48VDC Nominal input voltage
Applications
Wireless, Power Management, Communications & Networking, Automation & Process Control
