PIFACE PIFACE DIGITAL 2
Daughter Board, PiFace Digital 2, For Raspberry Models Pi A/B, Relays, Switches, Digital/Analog I/O
- Manufacturer:
- PIFACE PIFACE
- Manufacturer Part No:
- PIFACE DIGITAL 2
- Newark Part No.:
- 78X5847
-
- Product Range
- HATs - Automation and Motor Contol
- Also Known As:
- GTIN UPC EAN: 640522710294
- ECAD / MCAD
-
Product Range Selector (HATs - Automation and Motor Contol)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Microchip
- :
- -
- :
- -
- :
- MCP23S17
- :
- BCM2xxx
- :
- Compatible with Raspberry Pi 2 Model B, Raspberry Pi Model B+/A+
- :
- GPIO Expansion Board
- :
- HATs - Automation and Motor Contol
Technical Documents (3)
Product Overview

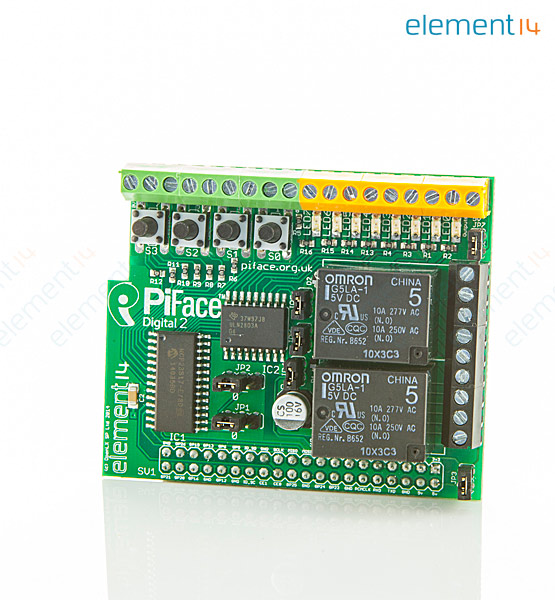

The PiFace Digital 2 is an add on board for Raspberry Pi that allows for connecting things that will influence the world around it. It includes components like relays, switches, digital and analogue I/O that will allow for connection to sensors, motors, lights etc and can be controlled by Raspberry Pi board. The PiFace Digital 2 has been designed to fit the Raspberry Pi A, A+, B and B+ models. This add on board fits neatly above the Raspberry Pi and connects using the expansion connector. Ensure that all expansion pins are lined up with the holes on the PiFace Digital 2 socket.
- Two changeover relays
- Four tactile switches
- Eight digital inputs
- Eight open collector outputs
- 8 onboard LEDs for indicating status of an application, debugging circuits and codes
- Graphical emulator
- Easy to program in Python 3 and 2, scratch and C language
- Support for interrupts
Applications
Hobby & Education, Building Automation, Automation & Process Control, Security, System Monitoring, Embedded Design & Development
Warnings
Ensure that no power is supplied to Raspberry Pi or PiFace Digital 2 boards when plugging or unplugging.
Also Known As
GTIN UPC EAN: 640522710294
