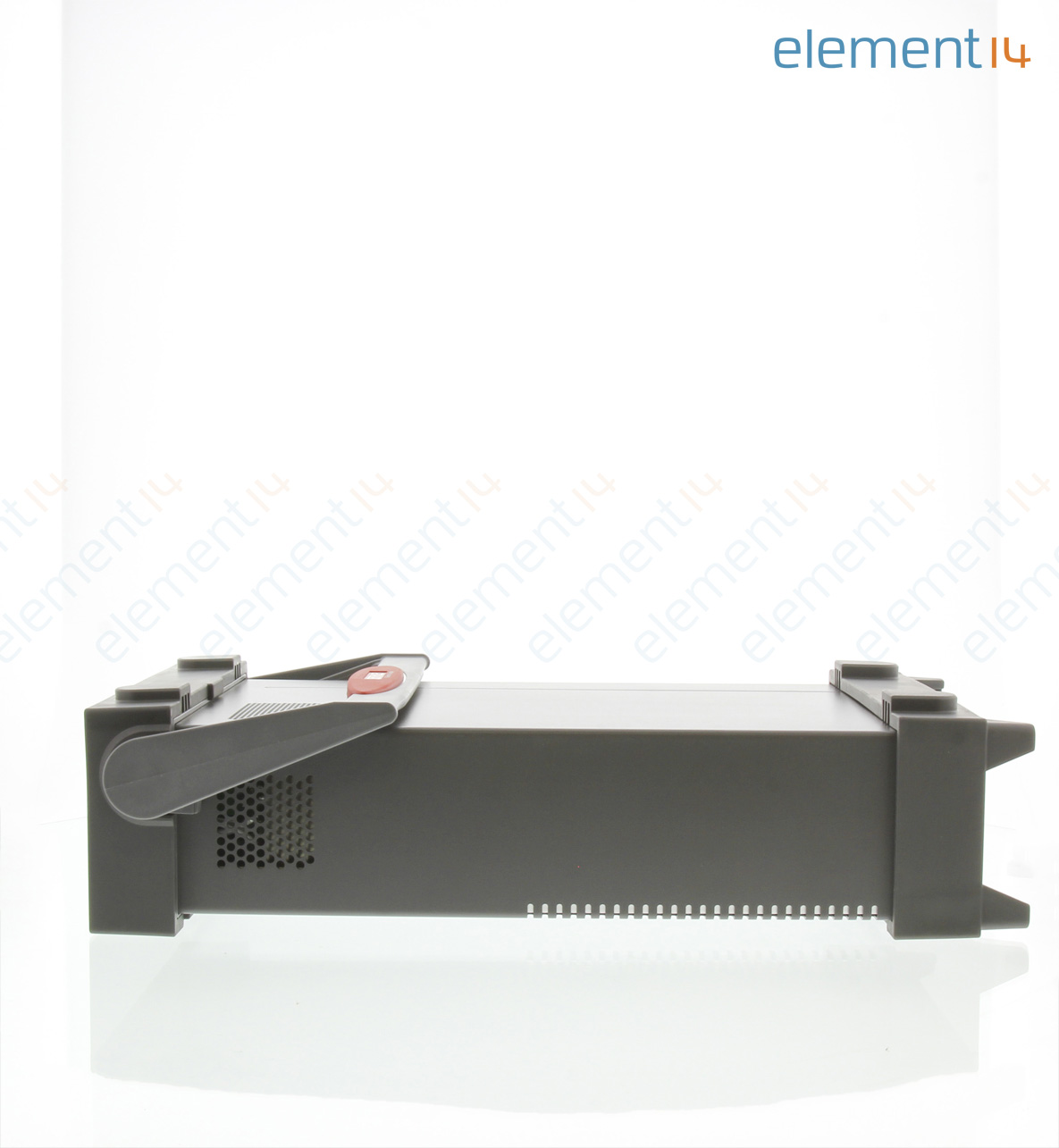

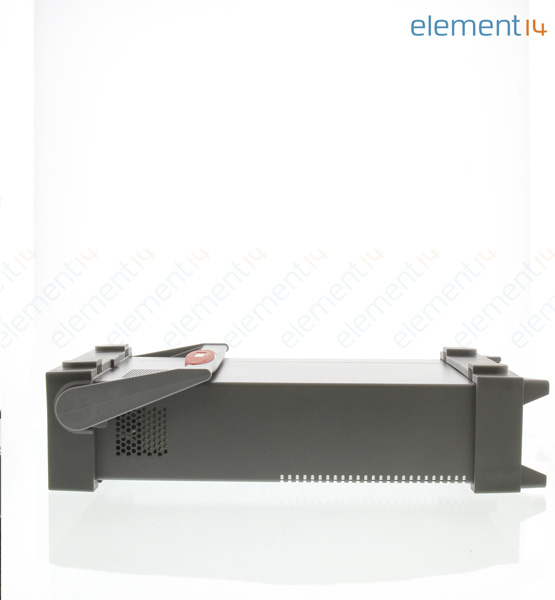

KEITHLEY DMM7510
Bench Digital Multimeter, DMM7500 Series, 7.5 Digit, 10 A, 1 KV
- Manufacturer:
- KEITHLEY KEITHLEY
- Manufacturer Part No:
- DMM7510
- Newark Part No.:
- 29Y2096
-
- Product Range
- DMM7500 Series
- Technical Datasheet:
- DMM7510 Datasheet
- ECAD / MCAD
-
Product Range Selector (DMM7500 Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 7.5
- :
- GPIB, LAN / LXI, USB
- :
- 10A
- :
- 700V
- :
- 1Gohm
- :
- DMM7500 Series
- :
- 10A
- :
- 1kV
- :
- 2 Years
- :
- AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance, Temperature
- :
- -
Technical Documents (5)
Product Overview
The Model DMM7510 combines all the advantages of a precision digital multimeter, a graphical touch screen display, and a high speed, high resolution digitizer to create: a graphical sampling multimeter. The digitizer gives the Model DMM7510 unprecedented signal analysis flexibility; the five-inch capacitive touch screen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and high ease of use offers unparalleled insight into your test results.
- 14 PPM basic one-year DCV accuracy
- 100mV, 1Ω, and 10µA ranges offer the sensitivity needed for measuring low level signals
- Make accurate measurements with offset compensated ohms, four-wire, and dry circuit functions
- Capture and display waveforms or transients with 1MS/sec digitizer
- Large internal memory buffer; store over 11 million readings in standard mode
- 27.5 million readings in compact mode
- Auto-calibration feature improves accuracy and stability by minimizing temperature and time drift
- Display more with five-inch, high resolution touch screen interface
- Readings and screen images can be saved quickly via the front panel USB memory port
- Two-year specifications allow for longer calibration cycles
Applications
Maintenance & Repair, Test & Measurement, Sensing & Instrumentation, System Monitoring
Contents
Test Leads, USB Cable Type A to Type B, 1m 3.3 ft., TSP-Link/Ethernet Cable, Documentation CD and Quick Start Guide
Footnotes
Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
US continental orders over $49 and under 50 pounds may qualify for free ground shipping. Click the link for the full Terms and Conditions of the offer.
18 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 6/3/24
Same day shipping
More stock available week commencing 6/3/24
×
Order before 8pm EST standard shipping
Monday to Friday excluding National Holidays
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$5,420.00
