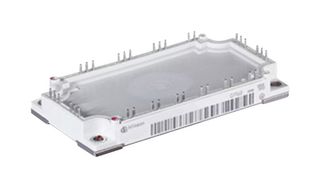

FS100R12KE3BOSA1
IGBT Module, Six Pack [Full Bridge], 140 A, 1.7 V, 480 W, 125 °C, Module
Image is for illustrative purposes only. Please refer to product description.
23 In Stock
Need more?
2 Delivery in 1-3 Business Days(US stock)
21 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $116.260 |
Price for:Each
Minimum: 1
Multiple: 1
$116.26
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS100R12KE3BOSA1
Newark Part No.13AC8744
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
DC Collector Current140A
Continuous Collector Current140A
Collector Emitter Saturation Voltage1.7V
Collector Emitter Saturation Voltage Vce(on)1.7V
Power Dissipation Pd480W
Power Dissipation480W
Operating Temperature Max125°C
Junction Temperature, Tj Max125°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
Collector Emitter Voltage V(br)ceo1.2kV
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product Range-
SVHCNo SVHC (21-Jan-2025)
