TWR-12311-KIT-NA

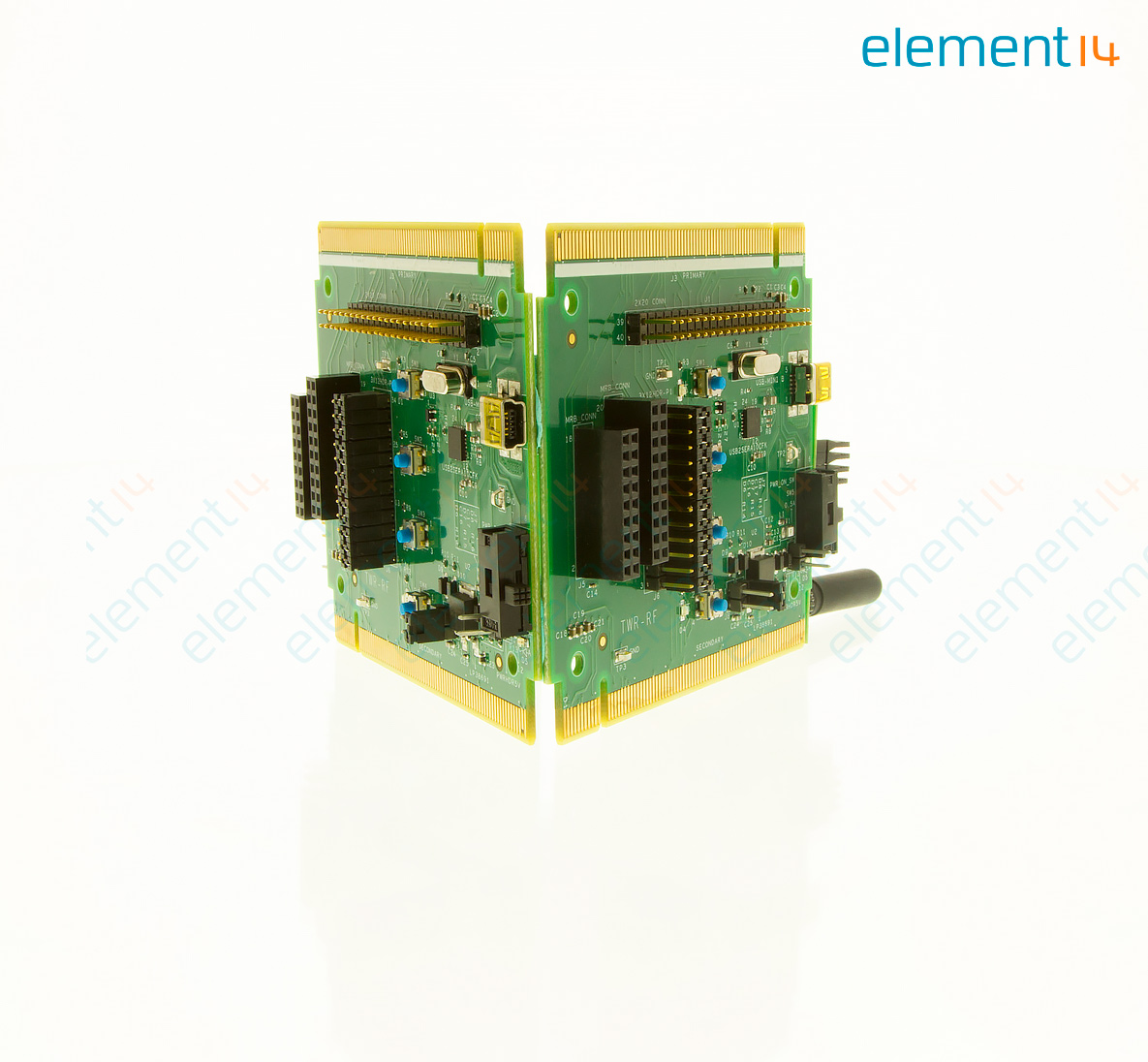

Tarjeta de Desarrollo, Módulo de Sistema de Torre, 2x MC12311, Tarjetas Módulo 915 MHz
La imagen solo tiene fines ilustrativos. Consulte la descripción del producto.
- Fabricante:
- NXP NXP
- No. Parte Fabricante:
- TWR-12311-KIT-NA
- No. Parte Newark
- 05W8720
Resumen del producto
The TWR-12311-KIT-NA is a Sub-1GHz Smart Radio Tower System Module for wireless connectivity. The TWR-12311 is a development tool for the NXP MC12311 system in package (SiP). MC12311 tools provide the ideal platform to develop a variety of applications where simple and robust wireless connectivity is needed. It enables fast, cost-effective wireless network development, with the necessary hardware, software, tools and demo applications to streamline the development process. This kit is part of the Tower System, a modular, reusable development platform that offers unlimited possibilities to develop systems for smart metering, medical, building and home automation applications.
- MC12311 sub-1GHz SiP operating from 315 to 960MHz
- Programmable 32kB flash memory and 2kB RAM
- Antennas with SMA connectors
- Power amplifier output
- Unbalance input/output port
- Flexible RF-front end for different bands operation
- Programmable output power from -18 to 17dBm in 1dB steps
- High sensitivity (down to -120dBm at 1.2kbps)
- Onboard Background Debug Module port for MCU flash reprogramming & in-circuit hardware debugging
- USB port to interface with PC
- LEDs and switches for demonstration, monitoring and control
Aplicaciones
Diseño Embebido y Desarrollo, Inalámbrico, Comunicaciones RF
Contenido
2 MC12311 Tower modules, 2 MC12311 915MHz Module boards.
Información del producto
¿Quiere ver productos similares? Simplemente seleccione los atributos requeridos y presione el botón ×
- :
- NXP
- :
- MC12311
- :
- Wireless Connectivity
- :
- Transreceptor de RF
- :
- Tarjeta de Desarrollo MC12311, Tarjeta Módulo 915 MHz
- :
- -
