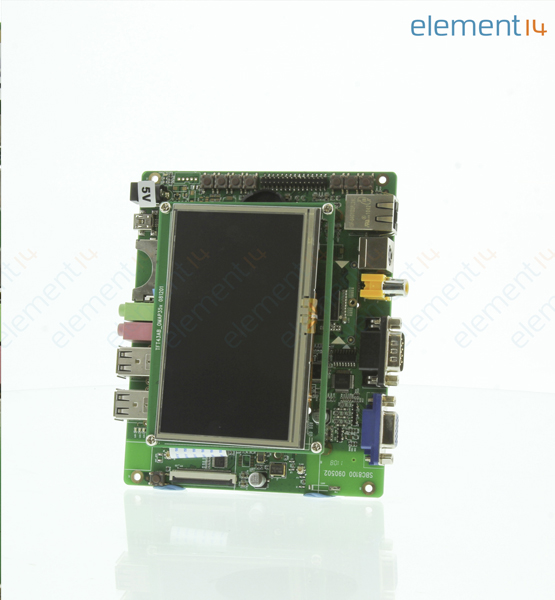

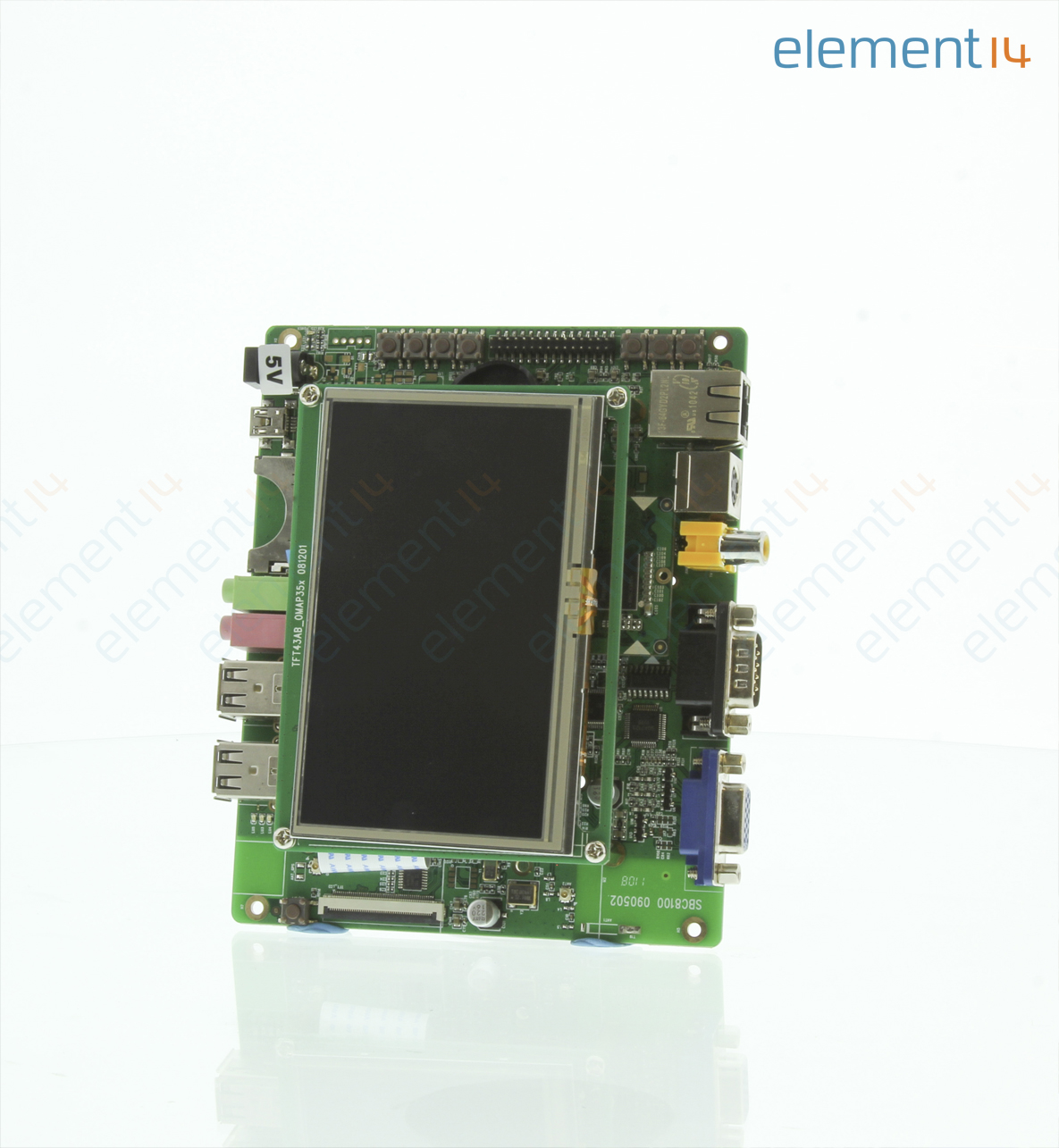

SBC8100 PLUS WITH 4.3''LCD
Single Board computer, 4.3" LCD, JTAG Board, Processor Based Single Board Computer
- Manufacturer:
- EMBEST EMBEST
- Manufacturer Part No:
- SBC8100 PLUS WITH 4.3''LCD
- Newark Part No.:
- 10W2169
- Technical Datasheet:
- SBC8100 PLUS WITH 4.3''LCD Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Texas Instruments
- :
- DaVinci - TMS320DM37xx
- :
- ARM
- :
- Cortex-A8
- :
- DM3730
- :
- Board, 2GB SD Card, Serial, Ethernet, USB & S-Video Cable, Power Adapter, CD, 4.3" LCD, JTAG Board
- :
- -
Technical Documents (4)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
The SBC8100 PLUS WITH 4.3''LCD is a single board computer based on Texas Instruments DM3730 DaVinci digital media processor with 4.3inch LCD. This high performance controller board is designed based on the Mini8510 processor card which integrates an DM3730 processor. The DM3730 DaVinci digital media processor is powered by up to 1GHz (also supports 300, 600, and 800MHz operation) ARM Cortex-A8 and 800MHz (also supports 250, 520 and 660MHz operation) C64x+ DSP core. The SBC8100 Plus is provided with Windows CE 6.0. net BSP and Linux 2.6.32 and Android 2.2 BSP with steady going drivers. In addition to those features provided by the CPU board, the expansion board has exposed many other features of the OMAP3530 or DM3730. It has integrated RS232, USB, Ethernet, WiFi/Bluetooth, GPS, audio In/Out, Keyboard, LCD, VGA, S-Video/TV out, SD card and more other functions on board. So many hardware resources provided by the expansion board, it becomes a solid reference board for customer design.
- One channel 4 wire JTAG interface
- 256MB DDR SDRAM
- 512MB NAND flash
- 12bit camera interface
- GPMC bus (16bit data bus, 10bit address bus, 4 chip selection signals and several control signals)
- Three channel 5 wire UARTs
- One channel ULPI (USB1 HS)
- 24bit DSS interface
- One channel I2C
- Two channel SPI
Applications
Multimedia, Communications & Networking, Imaging, Video & Vision
Contents
SBC8100 Plus board, 4.3inch LCD, 2GB SD card, Serial cable, Net cable, USB cable, S-Video cable, JTAG board, Power adapter, GPS antenna, One product CD (including user manual, schematic in PDF format, datasheet, Linux, Android and WinCE BSP).
Footnotes
WiFi/Bluetooth function is not working on SBC8100 Plus yet and can only be used on SBC8100 under WinCE OS.
Best Seller
US continental orders over $49 and under 50 pounds may qualify for free ground shipping. Click the link for the full Terms and Conditions of the offer.
0 In stock
Non-Cancelable / Non Returnable
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$680.34
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
