EM-AT91SAM3U
Expansion Board, For EM-AT91SAM3U Development Board, LED Backlight Driver, 60 Pin FPC Connector
- Manufacturer:
- EMBEST EMBEST
- Manufacturer Part No:
- EM-AT91SAM3U
- Newark Part No.:
- 63R5716
- Technical Datasheet:
- EM-AT91SAM3U Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Atmel
- :
- 32bit
- :
- AT91SAM3xxx
- :
- ARM
- :
- Cortex-M3
- :
- AT91S
- :
- ATSAM3U ARM-CM3 Board, RS-232 Serial Cable, USB Cable, CDROM
- :
- -
Technical Documents (5)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview

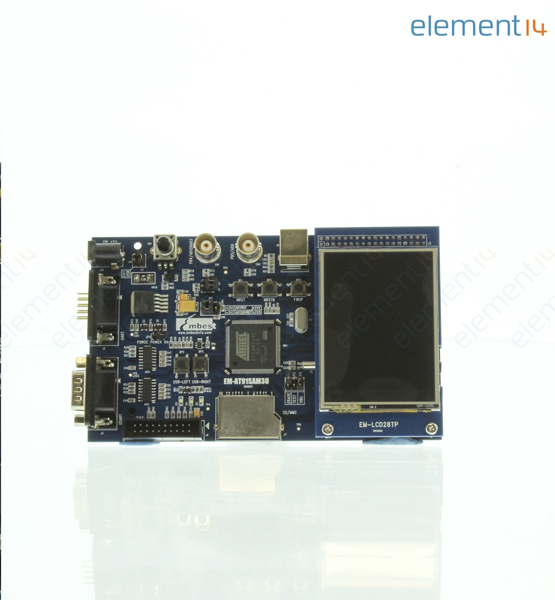

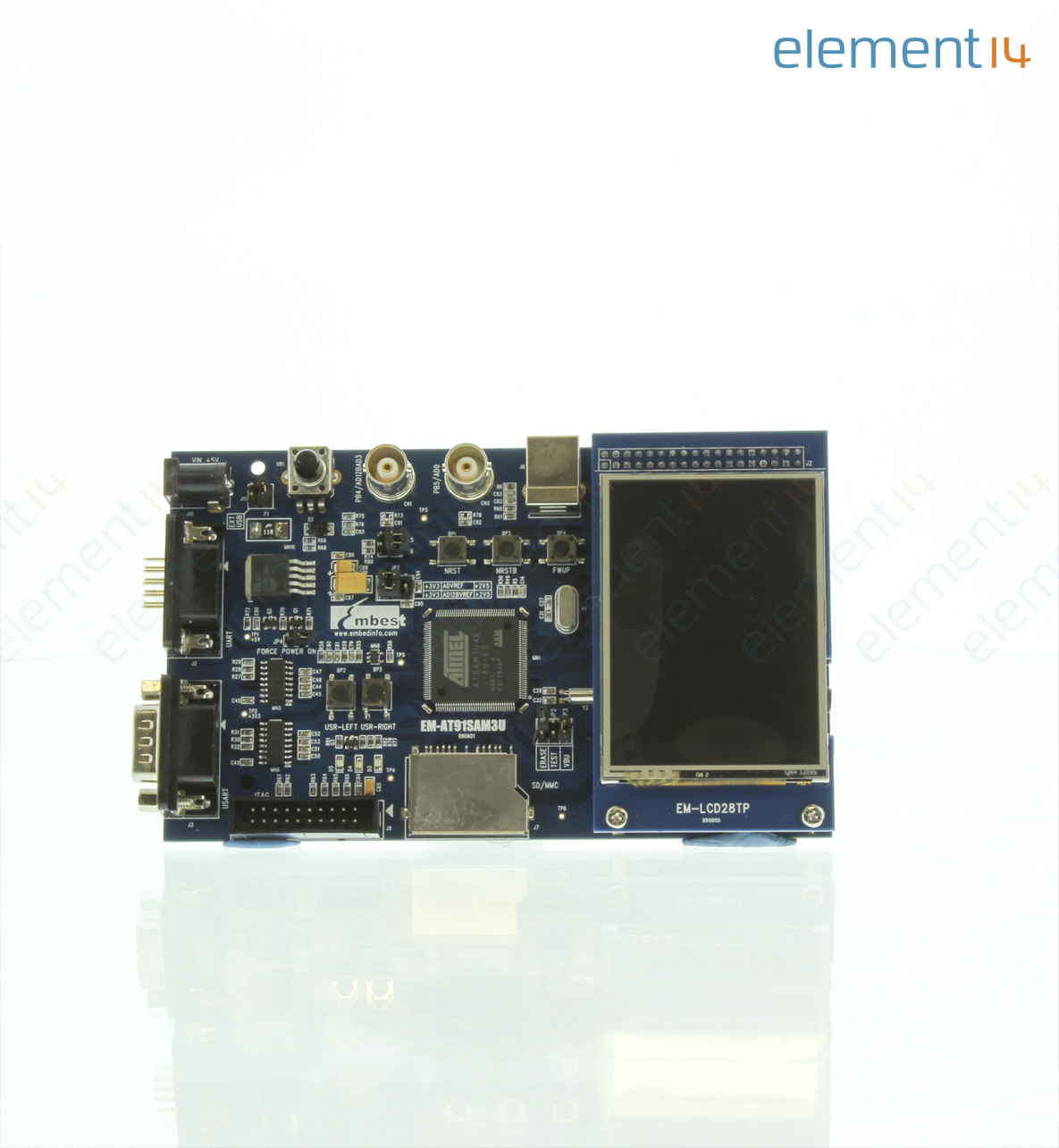

AT91SAM3U ARM-CM3 is an ARM embedded evaluation-board produced by Embest, integrates the Cortex-M3 core-based processor AT91SAM3U4E, operating at 84MHz frequency, with internal 256KB flash, 48KB SRAM. The board features USB, I2C, MCI interface, TFT-LCD, USART interface, 96 I/O port, EBI support SRAM/NOR/NAND memory, etc. Plenty of software examples, which can be used in Keil MDK environment, are accompanied in CDROM. This Cortex-M3 based AT91SAM3U Evaluation-board to generate and test application programs for the SAM3U Series microcontroller family. With this hands-on process, User has an option to determine the hardware and software requirements for current and future product development.
- Embest AT91SAM3U ARM-CM3 board is equipped with a SAM3U4E processor in LQFP144 package
- Operates at 96MHz frequency, Internal 256KB Flash, 48KB SRAM
- Features standard DB9 connector on the AT91SAM3U board for the AT91SAM3U's built-in UART interfaces
- Features standard DB9 connector for applications requiring CAN communications
- Features standard USB Type B connector for applications requiring USB communications
- 240x320 TFT, colour LCD display
- A JTAG on-chip debug interface, coupled with the ULINK USB-JTAG adapter, Flash programming
- On-chip debugging via the embedded trace macrocell capabilities of STM32F103
- Featured with MicroSD Card connector for developing applications requiring access to MicroSD Cards
- AT91SAM3U board includes 1Mbyte of external static RAM and 8Mbytes of external SPI flash memory
Contents
One AT91SAM3U ARM-CM3 Board, One 2.4 inches TFT LCDi240*320j, One RS-232 serial cable, One USB A-B cable, One CD-ROM(optional).
