EDM1070BR-01

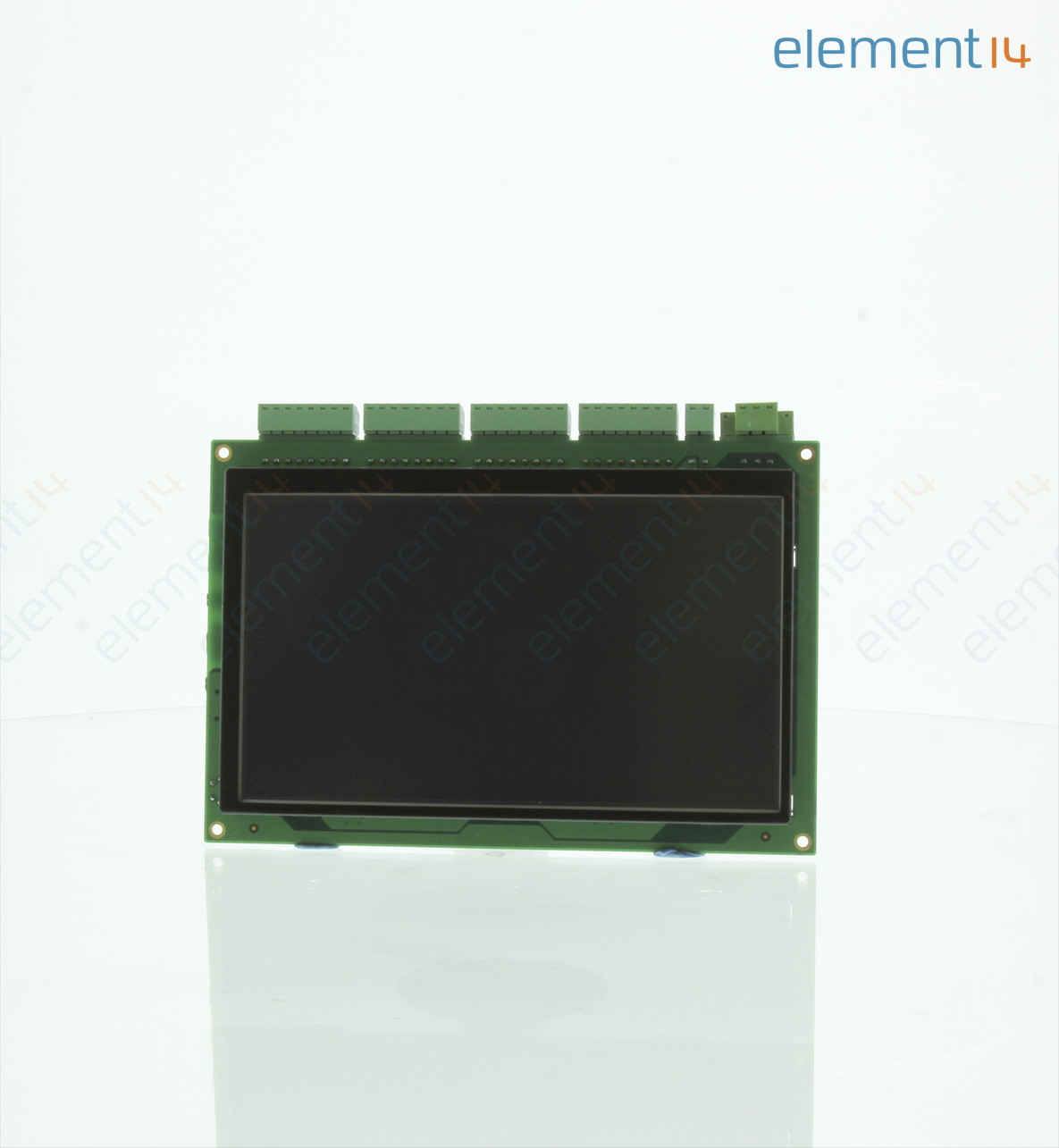

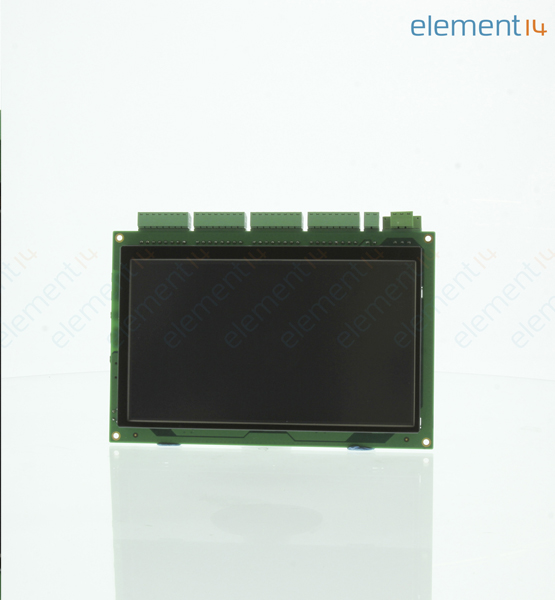

Embedded Display Board, MCU, EDM1070BR Board with LCD, Software CD
- Manufacturer:
- EMBEST EMBEST
- Manufacturer Part No:
- EDM1070BR-01
- Newark Part No.:
- 08X7019
- Technical Datasheet:
- EDM1070BR-01 Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- NXP
- :
- 32bit
- :
- LPC18xx
- :
- ARM
- :
- Cortex-M3
- :
- LPC1857
- :
- EDM1070BR Board with LCD, Software CD
- :
- -
Technical Documents (3)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
EDM1070BR-01. is a embedded display module based on 32bit ARM Cortex-M3 LPC1857FET256 processor, running at CPU frequencies of up to 180MHz. The ARM Cortex-M3 is a next generation core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration.
- 7inch TFT LCD touch screen
- Resolution of 800 × 3(RGB) × 480
- 32bit ARM Cortex-M3 LPC1857
- Three serial interface (3 wire, RS232/TTL level)
- Two CAN2.0B interfaces
- 10/100Mbps Ethernet interface
- One USB2.0 Device, One USB2.0 Host
- One mircoSD interface
- RS485, I2C, SPI, camera interface
- One 20-pin standard JTAG debug interface
Applications
Imaging, Video & Vision, Industrial, Consumer Electronics, RF Communications, Metering
Contents
Main board including 7inch LCD, CD.
