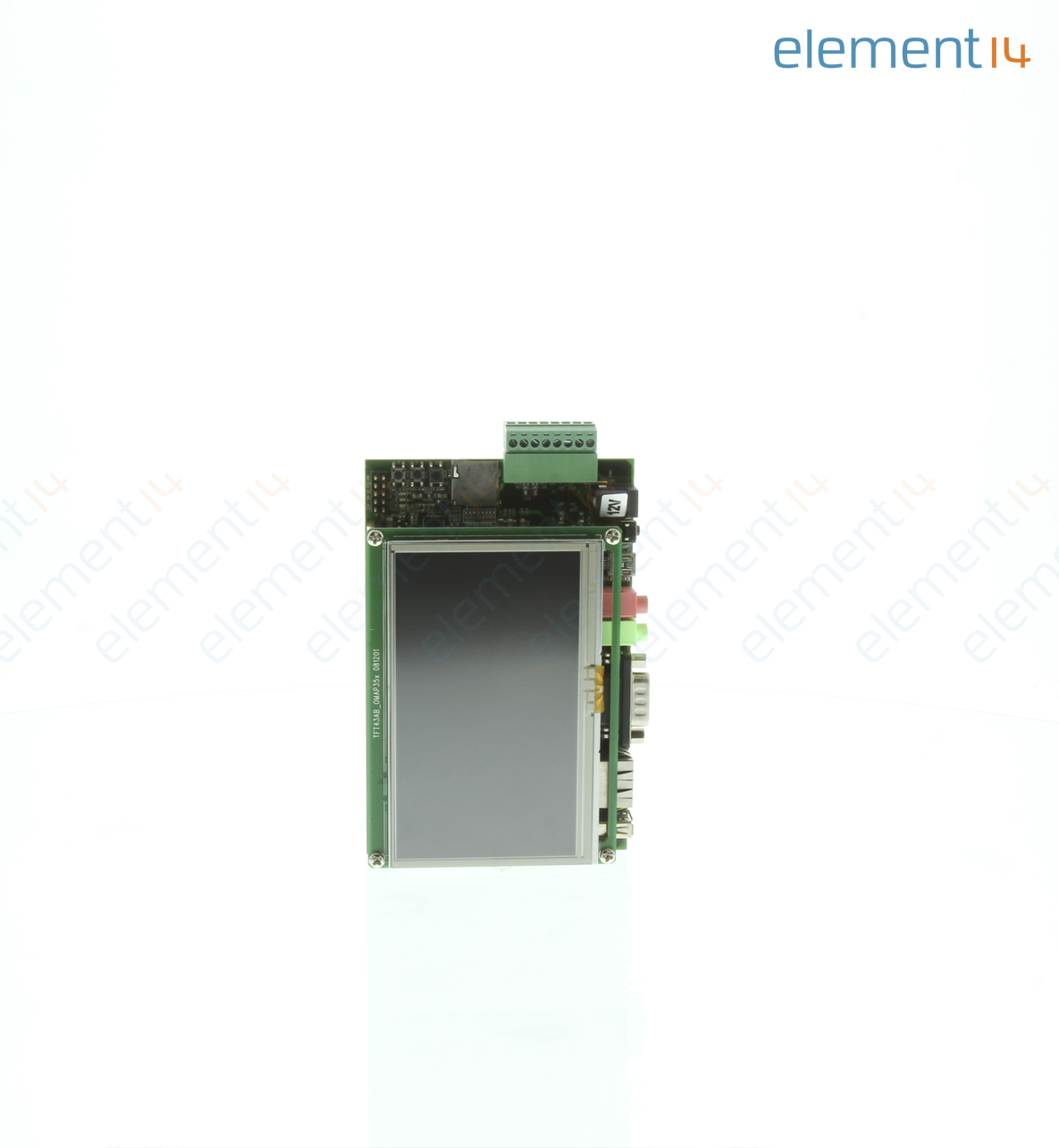

Evaluation Kit, Development Platform for TI Sitara ARM Cortex-A8, 4.3" LCD


The actual product may differ from image shown

Manufacturer Part No:
Newark Part No.:
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Texas Instruments


Sitara - AM335x




Board, DVD


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (4)

CAD Downloads


Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The DEVKIT8600 WITH 4.3" LCD is an evaluation kit with 4.3inch LCD. It is a complete development platform for Texas Instruments' Sitara AM3359 ARM Cortex-A8 processor. It supports running high level operating systems such as Linux, WinCE and Android which is a reliable and solid reference design and embedded product for development or applications. The DevKit8600 evaluation kit includes the DevKit8600 evaluation board and all necessary accessories to help users start their development. It is preloaded with Linux OS in NAND flash and WinCE OS in TF card. User can display the system by using a 4.3inch LCD and touch screen. The DevKit8600 evaluation board takes full features of the 720MHz AM3359 processor. It has 512MB of DDR3 SDRAM and 512MB of NAND flash on board. It has exposed rich hardware peripherals through connectors or headers.
  • 5 line debug serial port, RS232 voltage
  • USB2.0 OTG port with Integrated PHY, high speed (Mini USB type)
  • Optional VGA, USB WiFi, camera and 3G modules
  • USB 2.0 host port with Integrated PHY, high speed (USB-A type)
  • CAN 2.0 interface (8 pin Phoenix Connector)
  • 10/100/1000 Ethernet interface (RJ45 connector)
  • GPMC bus interface (brings out by 2.0mm pitch 30 pin dip connector J14)
  • Audio input and audio output interface
  • TFT LCD interface/4 line resistive touch screen interface
  • JTAG connector


Consumer Electronics, Automation & Process Control, Industrial, Medical, Portable Devices


DevKit8600 evaluation board, 4.3inch LCD(with touch screen), 2GB TF card, Serial cable, 12V at 1.25A power adapter, USB cable (Type A Male to Type Mini-B Male), USB cable (Type A Female to Type Mini-A Male), Cross Ethernet cable, WiFi antenna, Product DVD (including user manual, schematic in PDF format, datasheet, Linux 3.1.0 BSP, Android 2.3 BSP and WinCE 7 BSP).
