Evaluation Kit with 4.3" Touch Screen LCD


The actual product may differ from image shown

Manufacturer Part No:
Newark Part No.:
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Texas Instruments


DaVinci - TMS320DM37xx




Board, DVD


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (6)

CAD Downloads


Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

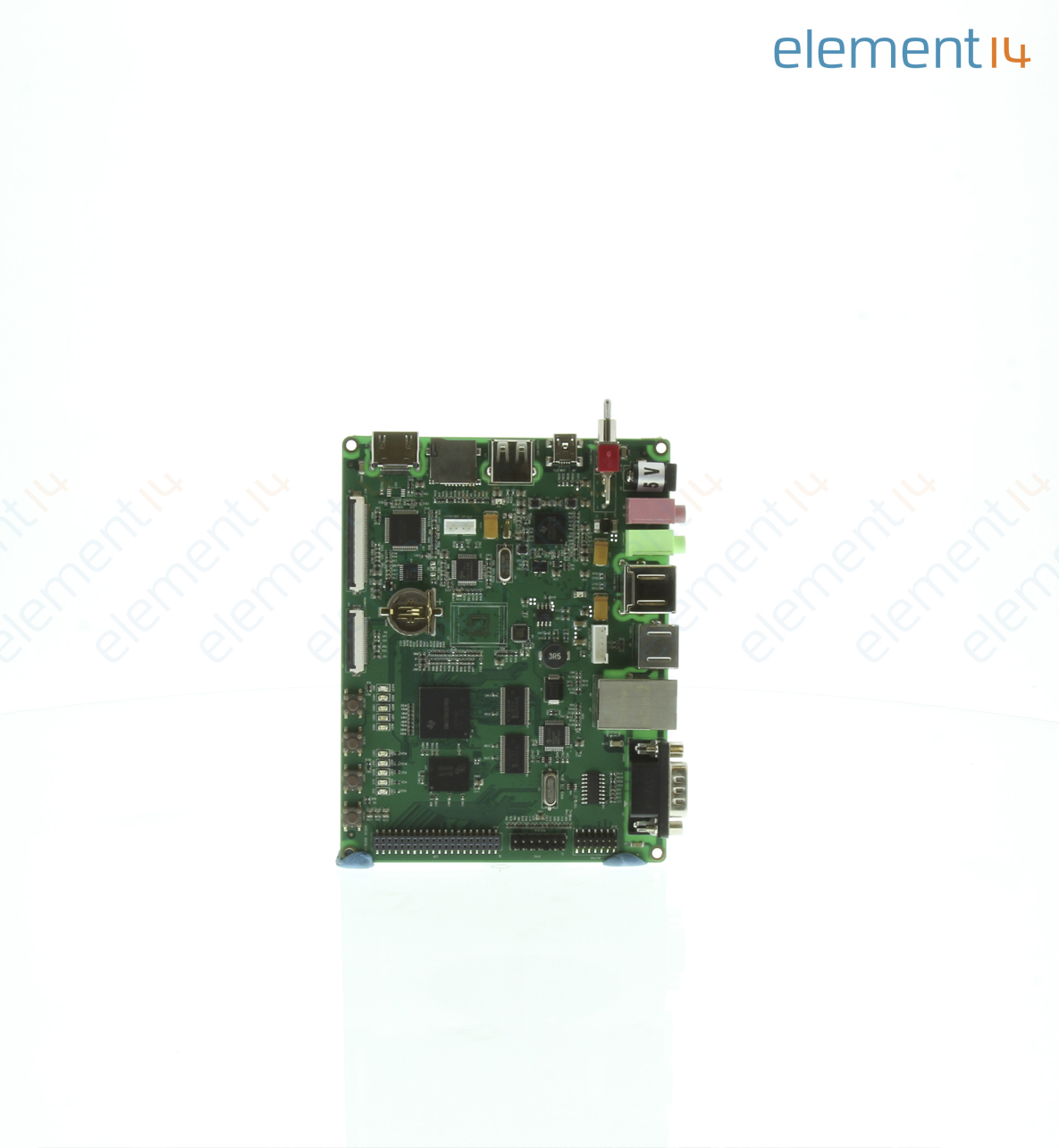

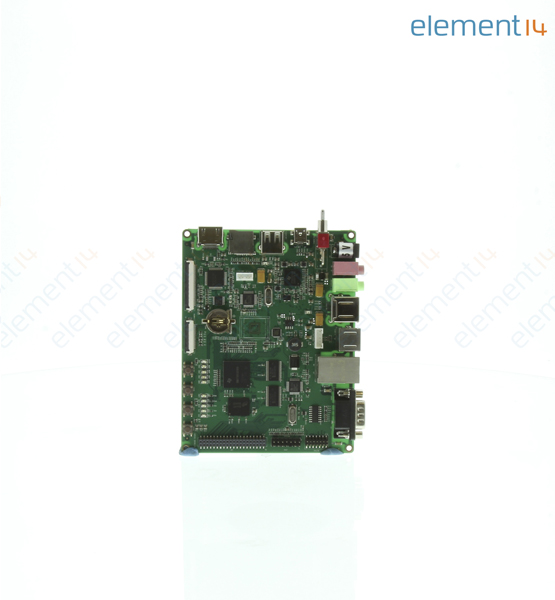

DEVKIT8500D WITHOUT LCD evaluation kit is an ideal hardware and software platform with the incorporation of TI's DaVinci DM3730 media processor, as well as support for running high level operating systems such as Linux, WinCE and Android. DaVinci DM3730 is a high performance digital media processors based on the enhanced device architecture. The C64x+ DSP and hardware video accelerator enable audio and HD 720p video decoding and encoding independent of the ARM processor. The programmable DSP engine allows multiple signal processing tasks such as image processing and analysis, digital filtering, and math functions. DaVinci DM3730-EVK video processor is suitable for 720p HD video applications which require large amount of data processing. The board takes full features of its processor and supports up to 512MB DDR SDRAM and 512MB NAND Flash as well as a reserved iNAND design to expand the flash storage capabilities. The board has exposed many other hardware interfaces.
  • TI DM3730 DaVinci Digital Media Processor (pin to pin compatible with TI AM3715)
  • High Performance Image, Video, Audio (IVA2.2) Accelerator Subsystem
  • POWERVR SGX graphics accelerator
  • 10/100M Ethernet interface (RJ45)
  • Mini USB type interface and USB A type interface
  • One 5 line Debug serial port, RS232 (DB9 connector)
  • LCD/Touch Screen interface, TF card slot
  • DVI high resolution image output port
  • Audio interface and camera interface
  • Keyboard and JTAG interface


Imaging, Video & Vision, Portable Devices, Communications & Networking, Consumer Electronics, Medical, Industrial, Automation & Process Control, Test & Measurement, Multimedia, Imaging, Video & Vision


Board, 2GB TF card, Power adapter, Cables, DVD.
