AT91SAM3U-SK
AM3U, TFT LCD, SERIAL, RS232, DEV KIT
- Manufacturer:
- EMBEST EMBEST
- Manufacturer Part No:
- AT91SAM3U-SK
- Newark Part No.:
- 63R5715
- Technical Datasheet:
- AT91SAM3U-SK Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Atmel
- :
- 32bit
- :
- AT91SAM3xxx
- :
- ARM
- :
- Cortex-M3
- :
- AT91S
- :

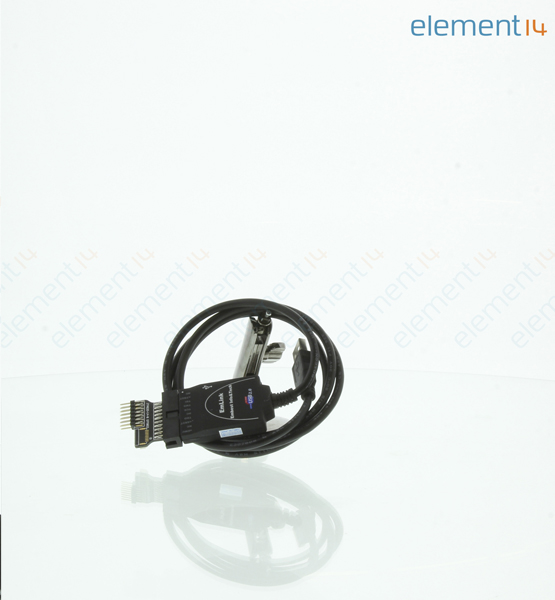

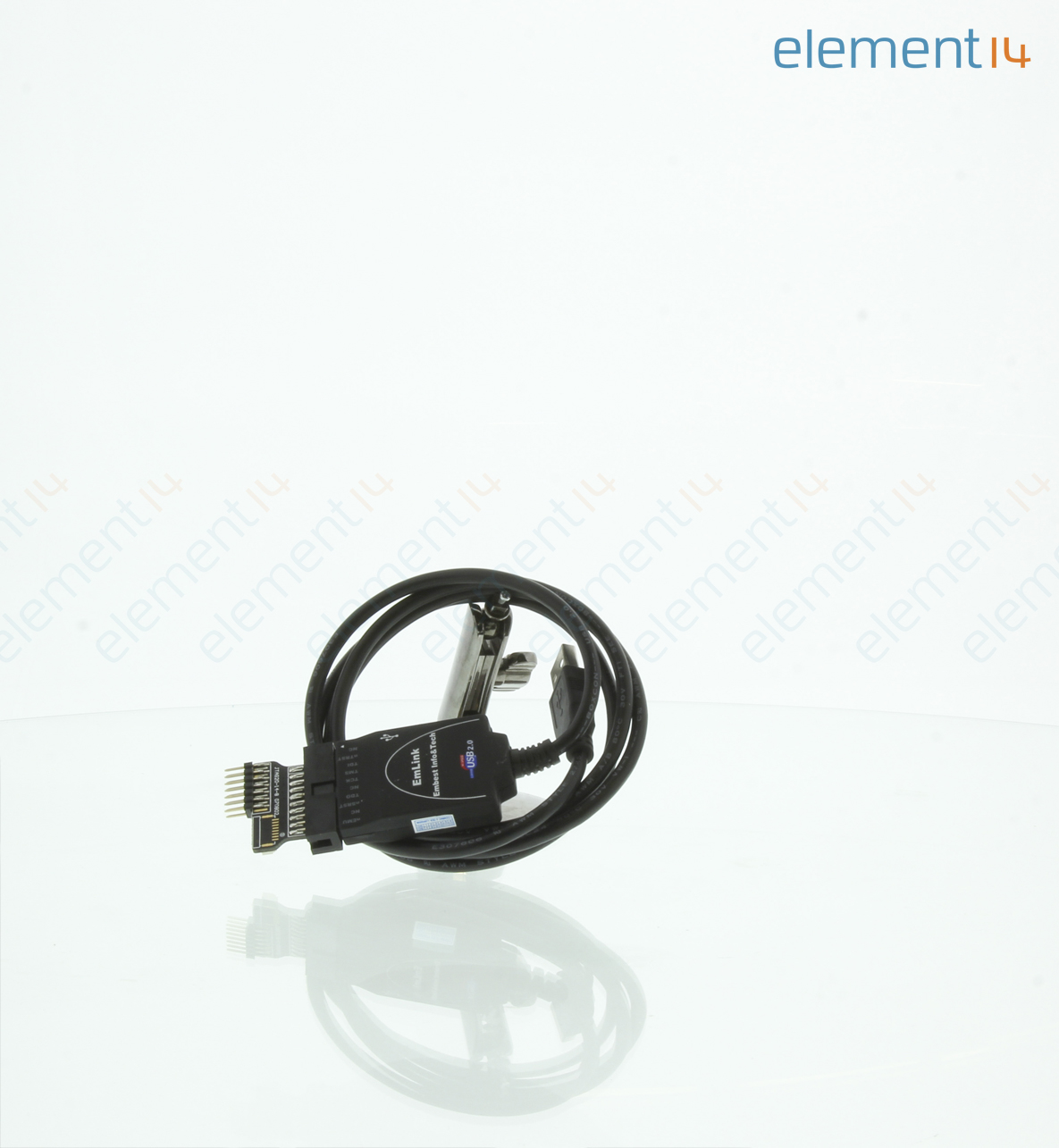

- AT91SAM3U ARM Cortex-M3 Board, LCD Panel, Emlink for ARM, Convert Module, Various Cables, CDROM
- :
- -
Technical Documents (5)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
The ATSAM3U ARM-CM3 board is an ARM embedded evaluation-board produced by Embest, integrate the Cortex-M3 core-based processor ATSAM3U4E, operating at 96MHz frequency. The board features USB, I2C, MCI interface, TFT-LCD, USART interface, 96 I/O port, EBI support SRAM/NOR/NAND memory, etc. Plenty of software examples, which can be used in Keil MDK environment, are accompanied in CDROM. Cortex-M3 based AT91SAM3U Evaluation-board to generate and test application programs for the SAM3U Series microcontroller family. With this hands-on process, User has an option to determine the hardware and software requirements for current and future product development. The AT91SAM3U Evaluation-board ships with the AT91SAM3U device that is a superset of several other device variants of the SAM3U microcontroller series. The AT91SAM3U board contains all the hardware components required in a single-chip AT91SAM3U4E system.
- Features standard DB9 connector on the AT91SAM3U board for the AT91SAM3U's built-in UART interfaces
- Features standard USB Type B connector for applications requiring USB communications
- A detachable, 240x320 TFT, color LCD display
- An adjustable analogue voltage source for testing the ADC built into the AT91SAM3U
- AT91SAM3U board includes 1Mbyte of external static RAM and 8Mbytes of external SPI flash memory
- Featured with MicroSD Card connector for developing applications requiring access to MicroSD Cards
- On-chip debugging via embedded trace macrocell capabilities of STM32F103 device
- A JTAG on-chip debug interface, coupled with the ULINK USB-JTAG adapter, provides flash programming
- Lithium battery is included on the AT91SAM3U
Contents
AT91SAM3U ARM-CM3 Board, power supply, universal input AC/DC power supply with US, Europe and UK plug adapters, one 3V Lithium Battery type CR1225, one USB cable, one serial RS-232 cable.
