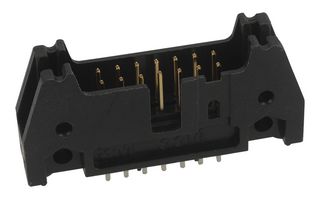

N3314-6002RB
Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 14 Contacts, Through Hole Straight, 3000 Series
- Manufacturer:
- 3M 3M
- Manufacturer Part No:
- N3314-6002RB
- Newark Part No.:
- 69K7214
- Product Range
- 3000 Series
- Also Known As:
- GTIN UPC EAN: 00051111650639 80400027746
- Technical Datasheet:
- N3314-6002RB Datasheet
Product Range Selector (3000 Series)
See all from this product rangeProduct Overview
The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
- Standard ejector latches
- Mounting holes for securing header to board
- Optional polarizing posts
- >1 x 10⁹Ω at 500VDC Insulation resistance
Applications
Defence, Military & Aerospace
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Wire-to-Board
- :
- 2.54mm
- :
- 2Rows
- :
- 14Contacts
- :
- Through Hole Straight
- :
- 3000 Series
- :
- Shrouded
- :
- Copper Alloy
- :
- Gold Plated Contacts
Technical Documents (6)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Also Known As
GTIN UPC EAN: 00051111650639 80400027746
US continental orders over $49 and under 50 pounds may qualify for free ground shipping. Click the link for the full Terms and Conditions of the offer.
0 In stock
Non-Cancelable / Non Returnable
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$2.29
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 350 Minimum: 350
| Quantity | Price | Your Price |
|---|---|---|
| 100+ | $2.29 | |
| 500+ | $1.91 | |
| 1000+ | $1.63 | |
| 5000+ | $1.45 | |
| 10000+ | $1.42 | |
