WIELAND ELECTRIC  21.311.1053.0  Panel Mount Barrier Terminal Block, Eurostyle, 10 Positions, 2 Row, 300 V, 20 A, 22 AWG, 14 AWG

WIELAND ELECTRIC 21.311.1053.0

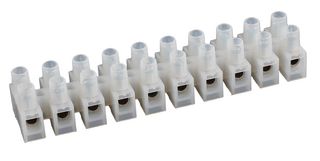

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 31F2415
  • Manufacturer Part No 21.311.1053.0

Product Overview


The 21.311.1053.0 is a 10-position 2-row panel mount type-6 Eurostyle Barrier Terminal Strip with brass contacts. It is made with the nickel-plated bras clamping body, phosphor bronze protection and galvanized steel and passivated clamping screws. The Europa strip offers a great solution for mounting electrical connections on a flat surface. It is divisible and can accommodate a wide range of current and wire gauges. The clamping screws are secured against loosening and provide proven and reliable connection. The terminal strip is supplied with the clamping screws in the open position. The terminals with wire protection DS are fitted with a wire protection guard inside the clamping body, which prevents damage to the connected wire. All parts are captive in the insulating housing.
  • UL94V-2 Flammability rating

Applications

Industrial
Back to top

Product Information


  • No. of Positions 10Positions
  • No. of Rows 2 Row
  • Rated Voltage 300V
  • Rated Current 20A
  • Wire Size AWG Min 22AWG
  • Wire Size AWG Max 14AWG
  • Product Range -
  • Approvals / Standards -
  • Series 6E
  • Contact Material Brass
  • Connector Type Terminal Block, Eurostyle
  • SVHC No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  131/1081
  •  132/1089

Availability

Availability:  343


  • 343 in stock for same day shipping

Check stock and lead times
    More stock available week commencing 5/30/16

Price for: Each

Minimum order quantity: 1

Order multiple quantity: 1

Price: $5.39 $5.39

Buy

Price

Quantity List Price
1 - 24 $5.39
25 - 99 $4.80
100 - 249 $4.27
250 - 499 $3.85
500+ $3.37


Low
