WAGO  280-833  DIN Rail Mount Terminal Block, 4 Positions, 28 AWG, 12 AWG, 2.5 mm², Clamp, 20 A

WAGO 280-833
WAGO 280-833
Technical Data Sheet (137.10KB) EN See all Technical Docs

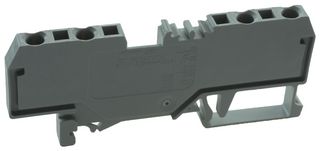

The actual product may differ from image shown

WAGO 280-833
WAGO 280-833

Product Overview

The 280-833 from Wago is a 4 conductor through DIN rail terminal block. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.
  • Gray colour terminal block
  • Dimension of terminal block is 28mm x 75mm x 5mm (H x L x W)
  • Weight of 9.164g
  • Front entry wiring
  • ABS, CSA, CCA, KEMA and UL approved, ratings according to IEC/EN 60947-7-1 standards
  • PA 6.6 V0 insulating material
  • Horizontal design
  • Pollution degree of 3



Product Information

No. of Positions:
4Positions
Wire Size AWG Min:
28AWG
Wire Size AWG Max:
12AWG
Conductor Area CSA:
2.5mm²
Wire Connection Method:
Clamp
Rated Current:
20A
Rated Voltage:
800V
No. of Levels:
1
Product Range:
280 Series
Approvals / Standards:
-
Series:
280
Contact Material:
Steel
Connector Type:
DIN Terminal Block
SVHC:
No SVHC (20-Jun-2016)

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

RoHS Compliant:
Yes
