TEXAS INSTRUMENTS  TMS320F28335ZJZA  MICROCONTROLLER MCU, 32 BIT, C2000, 150MHZ, BGA-176

TEXAS INSTRUMENTS TMS320F28335ZJZA
Technical Data Sheet (2.59MB) EN See all Technical Docs

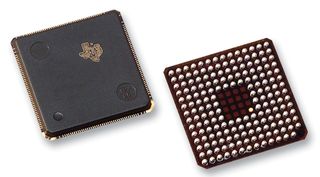

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The TMS320F28335ZJZA is a Delfino Microcontroller with a high-performance static CMOS technology. It comes with a 32-bit CPU which features 16 x 16 and 32 x 32 MAC operations, 16 x 16 dual MAC, Harvard bus architecture, atomic operations, fast interrupt response and processing and code-efficient (in C/C++ and assembly). The clock and system control features dynamic PLL ratio changes supported, on-chip oscillator and watchdog timer module. It features up to 88 individually programmable, multiplexed GPIO pins with input filtering.
  • Three 32-bit CPU timers
  • Peripheral interrupt expansion (PIE) block that supports all 58 peripheral interrupts
  • Single/simultaneous conversions
  • Analysis and breakpoint functions
  • Real-time debug via hardware
  • Low-power modes and power savings
  • Disable individual peripheral clocks
  • Green product and no Sb/Br



Product Information

Product Range:
C2000 Series
Core Frequency:
150MHz
Core Supply Voltage:
1.9V
DSC Case Style:
BGA
No. of Pins:
176Pins
Embedded Interface Type:
CAN, I2C, SPI, UART
No. of I/O's:
88I/O's
Supply Voltage Min:
1.805V
Supply Voltage Max:
1.995V
Flash Memory Size:
512KB
Operating Temperature Min:
-40°C
Operating Temperature Max:
85°C
Packaging:
Each
Program Memory Size:
512KB
MPU Core Size:
32bit
MSL:
MSL 3 - 168 hours
Peripherals:
ADC, DAC, DMA, PWM, Timer
SVHC:
No SVHC (15-Jun-2015)
RAM Memory Size:
68 KB
Controller Family/Series:
Delfino - TMS320F283xx

Find similar products  grouped by common attribute

Applications

  • Sensing & Instrumentation;
  • Industrial;
  • Medical;
  • Defence, Military & Aerospace

Legislation and Environmental

Moisture Sensitivity Level:
MSL 3 - 168 hours
Product Traceability
RoHS Compliant:
Yes
