TEXAS INSTRUMENTS  TMDSEZ28335  Development Kit, eZdsp, F28335, Code Composer Studio, Embedded USB J-TAG Controller

TEXAS INSTRUMENTS TMDSEZ28335
Manufacturer Part No:
TMDSEZ28335
Newark Part No.:
12P7914
Technical Datasheet:
See all Technical Docs
TEXAS INSTRUMENTS TMDSEZ28335
Video
360°

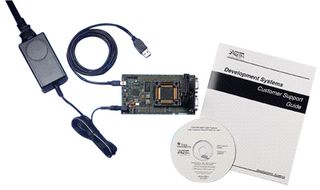

The actual product may differ from image shown

Product Overview

The TMDSEZ28335 is a eZdsp Starter Kit, which is a complete software development platform for the TMS320F2833x series of floating point digital signal controllers. The eZdsp kit includes an F28335 target board that features integrated JTAG emulation, 128Kx16 asynchronous SRAM, CAN 2.0 and RS 232 interfaces, and expansion headers that provide access to all F28335 I/O signals. Also included in the kit is the code composer studio integrated development environment, USB interface to the host PC, and a universal power supply.
  • TMS320F28335 floating point digital signal controller
  • 150MHz operation
  • 512KB on chip flash memory
  • 68KB on chip RAM
  • 12bit ADC with 16 input channels
  • Embedded USB JTAG Controller
  • Clamshell socket for the F28335 DSC
  • RS 232 interface with on board transceiver and 9 pin DSUB connector
  • CAN interface with on board transceiver and 9 pin DSUB connector
  • Multiple expansion connectors provide access to all F28335 I/O signals

Product Information

Silicon Manufacturer:
Texas Instruments
Accessory Type:
No. of Bits:
32bit
For Use With:
Silicon Family Name:
Piccolo - TMS320F280xx
Core Architecture:
C2000
Core Sub-Architecture:
C2000
Silicon Core Number:
TMS320F28
Kit Contents:
Board, Cables, CD, Docs
Features:
Product Range:
-
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • LED Lighting
  • Power Management
  • Automotive
  • Motor Drive & Control
  • Alternative Energy
  • Industrial
  • Robotics
