TEXAS INSTRUMENTS  TMDSDOCK28335  Experimenter Kit, TMS320F28335, Docking Station with on Board USB J-TAG Emulation

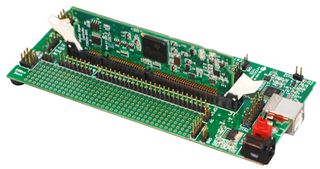

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The TMDSDOCK28335 is a C2000 experimenter Kit from Texas Instruments are ideal product for OEM to use for initial device exploration and testing. The 28335 experimenter Kit has a docking station with access to all control CARD signals, breadboard areas, RS232, JTAG connector and on board USB JTAG emulation. Each kit contains a 28335 control CARD. The control CARD is a complete board level module that utilizes and industry standard DIMM form factor to provide a low profiles single board controller solution. Kit is complete with Code Composer Studio IDE v3.3 C28x Free 32K byte Version. C2000 applications software with example code and full hardware details also available. No JTAG emulator required, as docking station features on board USB JTAG emulation.
  • TMS320F28335 MCU based control CARD
  • Docking station with on board USB JTAG emulation
  • Supports Code Composer Studio IDE v3.3, C28x free 32K byte Version
  • Applications software and example code also available for download
  • On board USB emulation or the ability to use an external JTAG emulator
  • Ability to use either the USB's 5V supply or an external power supply to power the board
  • UART communications through on board USB to UART bridge
  • Boot jumpers for all boot modes covered by F280xx and F2833x devices
  • 5.0V supply for prototyping area


Motor Drive & Control; Alternative Energy; Power Management; Lighting; Automotive
Back to top

Product Information

  • Silicon Manufacturer Texas Instruments
  • Core Architecture C2000
  • Core Sub-Architecture C2000
  • Silicon Core Number TMS320F28
  • Silicon Family Name Delfino - TMS320F283xx
  • No. of Bits 32bit
  • Kit Contents C2000 MCU controlCARD, Docking station brd, CC Studio
  • Features Docking Station with on Board USB JTAG Emulation, Code Composer Studio
  • Product Range -
  • SVHC No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

View this product in our online catalog

This product also features on the following pages and catalog editions:

  •  131/71
  •  132/73

  •   element14 Technical Page (379.19KB) EN
  • Availability

    Availability:  11

    • 11 in stock for same day shipping
    Check stock and lead times
      More stock available week commencing 5/23/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $101.93 $101.93



    Quantity List Price
    1+ $101.93

    Legislation and Environmental

    Back to top

    Related Videos

    Customer Reviews

    Customer Q&A Exchange

    (There is 1 question : 1 answer on this product)

    Product Q&A

    Ask your questions. Share your answers.

    Browse Q&A
    Search Questions
    Need Product Support?
    If you need immediate technical support use Live Support or Contact Us.
    This space is yours...
    Use this space to Ask your peers product questions or Answer those questions posted by them.
    Is everything included with (part number TMDSDOCK28335) so that I can start programming or should I order some accessories?
    1 year, 5 months ago
    0out of 0found this question helpful.
    Was this helpful?(0)(0)


    According to datasheet, the kit comes with Code Composer Studio IDE v3.3 C28x Free 32K Byte Version and docking station with on board USB JTAG emulation. So this is all you need to program.
