TEXAS INSTRUMENTS  TL084ACN  Operational Amplifier, Quad, 3 MHz, 4 Amplifier, 13 V/µs, 7V to 36V, DIP, 14 Pins

TEXAS INSTRUMENTS TL084ACN
Technical Data Sheet (10.07KB) EN See all Technical Docs

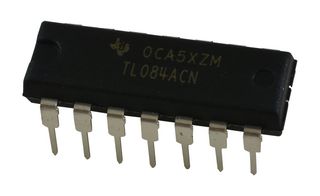

The actual product may differ from image shown

Product Overview

The TL084ACN is a quad JFET-input Operational Amplifier incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices features high slew rates, low offset-voltage temperature coefficient, low input bias and offset currents.
  • Wide common-mode and differential voltage ranges
  • Output short-circuit protection
  • Latch-up-free operation
  • Common-mode input voltage range includes VCC+
  • 1.4mA/channel Typical low power consumption
  • 30pA Typical low input bias current
  • 5pA Typical low input offset current
  • 0.003% Typical low total harmonic distortion



Product Information

Bandwidth:
3MHz
No. of Amplifiers:
No. of Amplifiers:
4 Amplifier
Slew Rate:
13V/µs
Supply Voltage Range:
7V to 36V
Amplifier Case Style:
DIP
No. of Pins:
14Pins
Operating Temperature Min:
0°C
Operating Temperature Max:
70°C
Packaging:
Each
Product Range:
-
Automotive Qualifications Standard:
-
Op Amp Type:
Low Power
MSL:
-
SVHC:
No SVHC (15-Jun-2015)

Find similar products  grouped by common attribute

Applications

  • Consumer Electronics;
  • Logistics;
  • Computers & Computer Peripherals

Legislation and Environmental

Moisture Sensitivity Level:
-
Product Traceability
RoHS Compliant:
Yes
