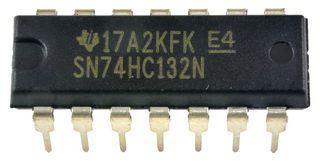

TEXAS INSTRUMENTS  SN74HC132N  QUAD NAND GATE SCHMITT TRIGGER DIP-14

TEXAS INSTRUMENTS SN74HC132N

Image is for illustrative purposes only. Please refer to product description.

Additional images

Product Overview


The SN74HC132N is a Quadruple Positive-NAND Gate with Schmitt-trigger inputs. Each circuit functions as a NAND gate, it has different input threshold levels for positive and negative-going signals. The HC132 device performs the Boolean function Y = (A • B)\ or Y = A\+B\ in positive logic. This circuit is temperature compensated and can be triggered from the slowest of input ramps and still give clean jitter-free output signals.
  • Outputs can drive up to 10 LSTTL loads
  • Green product and no Sb/Br

Applications

Communications & Networking; Automotive
Back to top

Product Information


  • No. of Channels 4Channels
  • Output Current 5.2mA
  • Logic Type NAND Schmitt Trigger
  • Input Level
  • No. of Pins 14Pins
  • Logic Case Style DIP
  • Supply Voltage Min 2V
  • Supply Voltage Max 6V
  • Operating Temperature Min -40°C
  • Operating Temperature Max 85°C
  • Packaging Each
  • MSL -
  • Supply Voltage Range 2V to 6V
  • SVHC No SVHC (15-Jun-2015)
  • CAD CadSoft_EAGLE (2.77KB) EN
  • Availability

    Availability:  2,163


    • 2,163 in stock for same day shipping

    Check stock and lead times
      More stock available week commencing 6/20/16

    Price for: Each

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $0.422 $0.422

    Buy

    Price

    Quantity List Price
    1 - 9 $0.422
    10 - 99 $0.354
    100 - 999 $0.215
    1000 - 2499 $0.166
    2500 - 9999 $0.142
    10000 - 24999 $0.132
    25000 - 49999 $0.125
    50000+ $0.12
