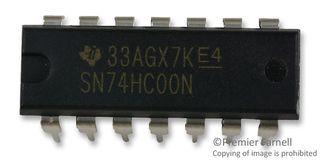

TEXAS INSTRUMENTS  SN74HC00N  QUAD NAND GATE, 2I/P, DIP-14

Image is for illustrative purposes only. Please refer to product description.

Product Information


  • Logic Case Style: DIP
  • Logic Type: NAND
  • MSL: -
  • No. of Inputs: 2
  • No. of Pins: 14
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Current: 5.2mA
  • Packaging: Each
  • SVHC: No SVHC (15-Jun-2015)
  • Supply Voltage Max: 6V
  • Supply Voltage Min: 2V
  • Supply Voltage Range: 2V to 6V

Description

The SN74HC00N is a four independent 2-input NAND Gate IC. It performs the Boolean function Y = (A • B)\ or Y = A\ + B\ in positive logic.

Features:

  • Outputs Can Drive up to 10 LSTTL Loads
  • Low-power Consumption, 20µA Maximum ICC
  • 8ns Typical Propagation Delay Time
  • ±4mA Output Drive at 5V
  • Low Input Current of 1µA Maximum

Applications:

  • Microwave

Find similar products  grouped by common attribute

View this product in our online catalog


This product also features on the following pages and catalog editions:

  •  130/274
  •  131/271

Availability

Availability:  4,058


  • 4,058 in stock for same day shipping

Check stock and lead times
    More stock available week commencing 9/21/15

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Price: $0.484 $0.484

Buy

Price

Quantity List Price
1 - 9 $0.484
10 - 99 $0.328
100 - 999 $0.177
1000 - 4999 $0.133
5000 - 9999 $0.122
10000 - 24999 $0.108
25000 - 49999 $0.10
50000+ $0.099
