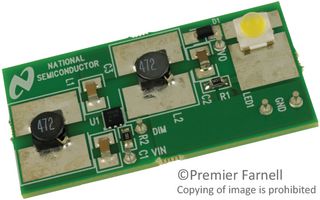

TEXAS INSTRUMENTS  LM3410XSDSEPEV  EVALUATION BOARD, LM3410 285mA SEPIC LED DRIVER

Image is for illustrative purposes only. Please refer to product description.

Additional images

Product Information


  • Core Chip: LM3410X
  • Device Topology: Boost (Step Up)
  • Dimming Control Type: PWM
  • Input Voltage: 2.7V to 5.5V
  • Input Voltage Max: 5.5V
  • Input Voltage Min: 2.7V
  • Kit Contents: Evaluation Board for LM3410
  • No. of Outputs: 1
  • Output Current: 285mA
  • Output Voltage: -
  • SVHC: To Be Advised
  • Topology: Boost (Step Up)

Description

The LM3410XSDSEPEV is a LM3410XSD SEPIC high brightness LED evaluation board. This evaluation board converts 2.7V to 5.5V input and illuminates a 320mA HB/OLED using the LM3410X 1.6MHz LED driver switching converter. This is a two layer board using the bottom layer as a ground plane.

Features:

  • 2.7V to 5.5V input voltage range
  • 3V to 24V output voltage range
  • 2.8A typical switch current
  • 1.6MHz switching frequency
  • 170mΩ NMOS switch
  • 190mV internal voltage reference
  • Internal soft start
  • Current mode, PWM operation

Applications:

  • Automotive
  • LED Lighting
  • Power Management

Availability

Availability:  10

(Available until stock is exhausted)


  • 10 in stock for same day shipping

Price for: Each 1

Minimum order quantity: 1

Order multiple quantity: 1

Unit Price: $16.55

Buy

Price

Quantity List Price Your Price
1+ $52.73
