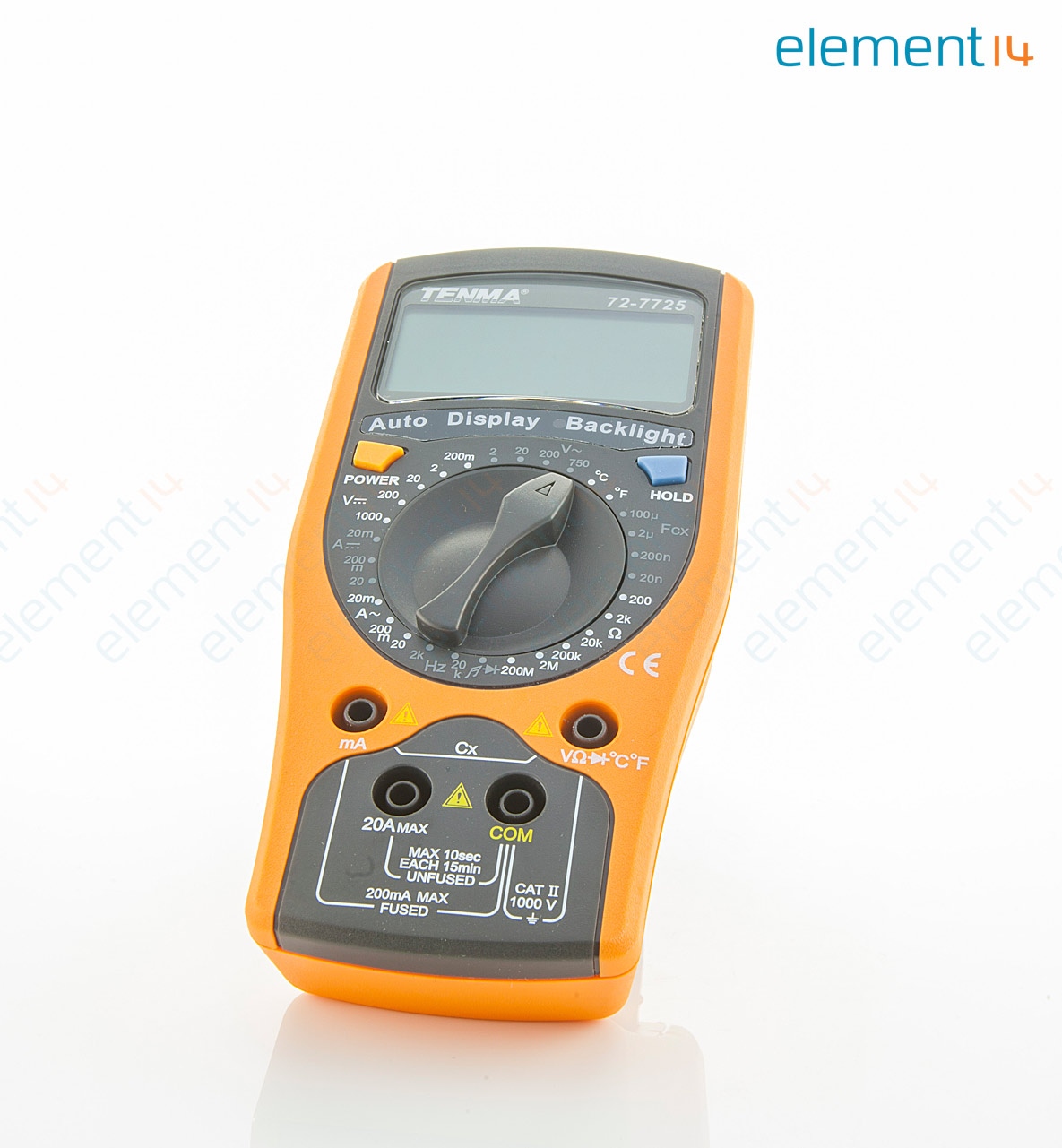

TENMA 72-7725 Digital Multimeter, 2000 Count, Manual Ranging with Backlight and Temperature

Technical Data Sheet (270.20KB) EN See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

Product Overview

This fully function multimeter offers a variety of ranges for every service application, including Fahrenheit and Celsius temperature measurement. Rugged over moulded housing stands up to the daily rigors of field service use, and large backlit LCD display is easily read from several feet away.

3-1/2 digit, 1999 count display
7/8" digits for easy at–a–glance reading
Backlit display
Continuity buzzer
Data hold
Full icon display
Sleep mode
Low battery display
Meets 1000V CATII standards

Product Information

DMM Functions:: AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance, Temperature
Current Measure AC Max:: 20A
Current Measure DC Max:: 20A
Voltage Measure AC Max:: 750V
Voltage Measure DC Max:: 1kV
Resistance Measure Max:: 0.2Gohm
DMM Response Type:: Mean Value
Display Count:: 1999
No. of Digits:: 3.5
Range Selection:: Manual
Warranty:: -
Product Range:: -
Current Measuring Range AC:: 20mA to 20A
Current Measuring Range:: 2mA to 20A
DMM Type:: Hand Held
Voltage Measuring Range DC:: 200mV to 1000V
Approval Categories:: IEC 1010, 1000V CAT II, 600V CAT III, CE
Ranging:: Auto, Manual
Voltage Measuring Range AC:: 2V to 750V
Temperature Measuring Range:: -40°C to +1000°C
Plug Type:: -
SVHC:: To Be Advised
Current Measuring Range DC:: 20mA to 20A

Find similar products grouped by common attribute

Applications

Industrial;
Maintenance & Repair;
Test & Measurement;
Portable Devices

Also Known As

GTIN UPC EAN: 640522694877

Legislation and Environmental

Authorized Distributor

Substitutes

CALIBRATED W/DATA - MULTIMETER DIGITAL HANDHELD, 3-1/2 DIGIT

TENMA

41: in stock

Price for: Each

1+ $135.27

Buy

Associated Products

Similar Products

Find products functionally similar to this one. Select one of the following links, and you will be taken to a product group page that presents all products in this category that share the given attribute.

Manufacturer:: TENMA TENMA
Newark Part No.:: 02J5539
Manufacturer Part No: 72-7725
Also Known As: GTIN UPC EAN: 640522694877

41 In stock

41 in stock for same day shipping

see cut-off times

Check stock and lead times

100 Further stock expected to ship on Oct 17, 2016

$46.02 $ 46.02

Price for:: Each

Minimum order quantity:: 1

Order multiple quantity:: 1

Quantity

Buy

Spotted an Error?

Print Page

Add to Favorites

$

Price

Quantity	List Price
1 - 4	$46.02
5+	$42.48

Looking for larger Quantities?
Submit a request to our quote specialists

Technical Docs

Customer Reviews

TENMA - 72-7725 - MULTIMETER DIGITAL HANDHELD, 3-1/2 DIGIT 5 5 2 2

great value for the price I haven't found anything wrong with it yet. It has a great set of functions. It's a great value for the price. February 17, 2012

Great value The variety of measurement functions provided by this multimeter, and the accuracy specifications on some of those measurements, are things you would expect to find in a meter costing considerably more. What you get: The meter comes with two sets of leads, a temperature probe, and a nine volt battery. One set of leads has probes on the end, while the other has allegator clips. While it is nice to have both options, the leads with the allegator clips are only seven inches long, limiting their utility. The probe leads are a generous 41.5 inches long. The battery needs to be installed before the meter will operate. This requires a small philips screwdriver, so be sure you have one if you order this meter. In the unit I received the screw on the battery compartment had been screwed in very tightly, but I was able to get it open after a bit of effort. Accuracy: The accuracy specifications are generally quite good for a multimeter under $100. The only qualification here is that the maximum count is 1999, so errors in the last digit matter more than in meters with a larger count. For example, when measuring a 19 volt voltage, you can use the 20 volt range, which has an accuracy of 0.5% of reading + 1 digit, giving an accuracy of about 0.55% of reading. But if you want to measure a voltage of 20 volts, you need to use the 200 volt range, where 1 digit is equal to 0.1 volts, and the error becomes 1% of reading. Note that because the maximum count is 1999 and not 2000, the 20 volt range can only measure a maximum of 19.99 volts. Measurment functions: DC voltage: The 2, 20, and 200 volt ranges have an accuracy of 0.5% + 1 digit. There is a 200 millivolt range with an error of 0.5% + 3 digits. And there is a 1000 volt range with an error of 0.8% + 2 digits. AC voltage: The 2, 20, and 200 volt range have an accuracy of 0.8% + 3 digits. The maximum range is 750 volts AC, with an accuracy of 1.2% + 3 digits. Resistance: The meter has a rated accuracy of 0.8% + 3 digits on the 200 ohm range, and an accuracy of 0.8% + 1 digit on the 2K through 2M ranges. I measured a the values of a number of 0.1% resistors ranging from 120 ohms to 1 megaohm, and the measured values never differed from the nominal values by more than 0.2%, meaning that the accuracy of the meter was 0.3% or better. In addition to the the above mentioned ranges, the meter also has a 200 megaohm range. It is impressive that a meter in this price range can measure resistances that high, but the rated accuracy is less impressive: 5% + 10 digits. Most of the 10 digit error is due to a fixed offset, which you can subtract out. My meter reports a resistance of zero as 0.9M and a resistance of 1.0M as 1.9M. Capacitance: To measure capacitance, the meter generates an AC signal with a DC offset (so that the voltage across an electrolytic capacitor will always be positive) and measures the AC impedance. The ranges are 20nF, 200nF, 2uF, and 100uF. The accuracy is 4% + 3 digits for the first three ranges and 5% + 4 digits for the 100uF range (and if I understand the documentation correctly, the 5% + 4 accuracy only applies to capacitances of 30uF or less). When I measured a 0.01uF 1% capacitor the reading was about 2% below the nominal value, which means that the reading was below the actual capacitance but within the specified error range. A larger number of capacitance ranges would be useful, especially at the low end. Other functions, which I have not used enough to comment on, include current (AC & DC), continuity, diode test, and frequency. Protection: Most functions are protected up to 250 VAC, which is larger than any voltages a hobbyist is likely to work with. The voltage functions (except the 200 mV range) are protected up to 750 VAC / 1000 VDC. The 20 and 200 mA ranges are protected by a 500 mA fuse. The 20 amp range is not fuse protected. Ergonomic issues: The controls are simple: a power switch, a hold switch (which preserves the current reading), and a rotary dial to set the range. Occasionally I've pushed the power button down far enough to turn on the meter, but not far enough down so that it catches, meaning that the meter turns back off when I release the button. The hold switch does its job, and an H on the display informs you that you are getting a held reading rather than a current measurment. Groups of settings on the rotary switch are indicated by alternating white and grey labels. For example, the DC volt ranges are labeled with white text while the AC volt ranges are labeled with grey text. The downside of this is that the grey text is hard to read. On the other hand, the display is easily readable, and includes a backlight so it can be read even in the dark. The backlight comes on only when a sensor detects low light levels, so it won't consume power (which would reduce battery life) under normal illumination condistions. The meter can be positioned at either a 35 or 45 degree angle from the horizontal using a two position flap which folds out from the back of the meter. I haven't felt the need to use this feature since I have no trouble reading the meter when it is lying flat. To avoid running down the battery if you forget to turn the meter off, the meter will go into sleep mode if you leave it idle for 10 minutes. To exit sleep mode, you turn the meter off and then back on again. To measure current, the range must be selected and the red lead must be plugged into the mA or 20A plug, depending on the range. Less intutively, to measure capacitance, the red lead is left where it is but the black lead is moved to the mA socket. If you neglect to do this, the capacitance is registered as zero. More confusing is what happens if you switch from capacitance to resistance without moving the black lead back to its normal plug. On the higher resistance ranges, the result will be an incorrect but not infinite reading. Conclusion: In this review I've noted a few issues with this meter, but they are minor. If you expect to use a multimeter day in and day out, it's probably worth spending the money to get something like the Fluke 87 V. For the hobbyist or occasional user, this meter offers good value for the money. January 14, 2011

1-2 of 2

Customer Q&A Exchange

(There is 1 question : 1 answer on this product)

Product Q&A

Ask your questions. Share your answers.

Browse Q&A

Search Q&A

Search Questions

Need Product Support?

If you need immediate technical support use Live Support or Contact Us.

This space is yours...

Use this space to Ask your peers product questions or Answer those questions posted by them.

Ask a Question

Q:

1 answer

Please could you provide more information on 72-7725 product ?

2 years, 7 months ago

by

NewarkProductEnrichment01

Answer this Question

0points

0out of 0found this question helpful.

Was this helpful?(0)(0)

Report Abuse

Answers

A:

Description:
This fully function multimeter offers a variety of ranges for every service application, including Fahrenheit and Celsius temperature measurement. Rugged over moulded housing stands up to the daily rigors of field service use, and large backlit LCD display is easily read from several feet away.

Feature & Benefits:
3-1/2 digit, 1999 count display
7/8" digits for easy at–a–glance reading
Backlit display
Continuity buzzer
Data hold
Full icon display
Sleep mode
Low battery display
Meets 1000V CATII standards

Applications: Industrial, Test & Measurement, Maintenance & Repair, Portable Devices

Kit Contents:
Operating manual, Test Lead, Test Clip, Point Contact Temperature Probe.
