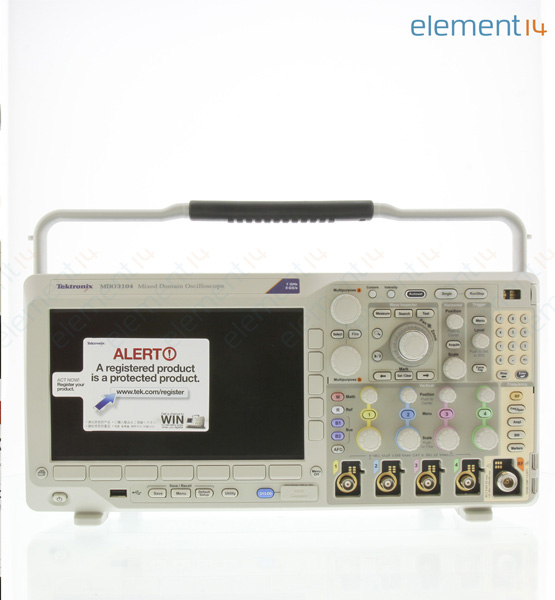

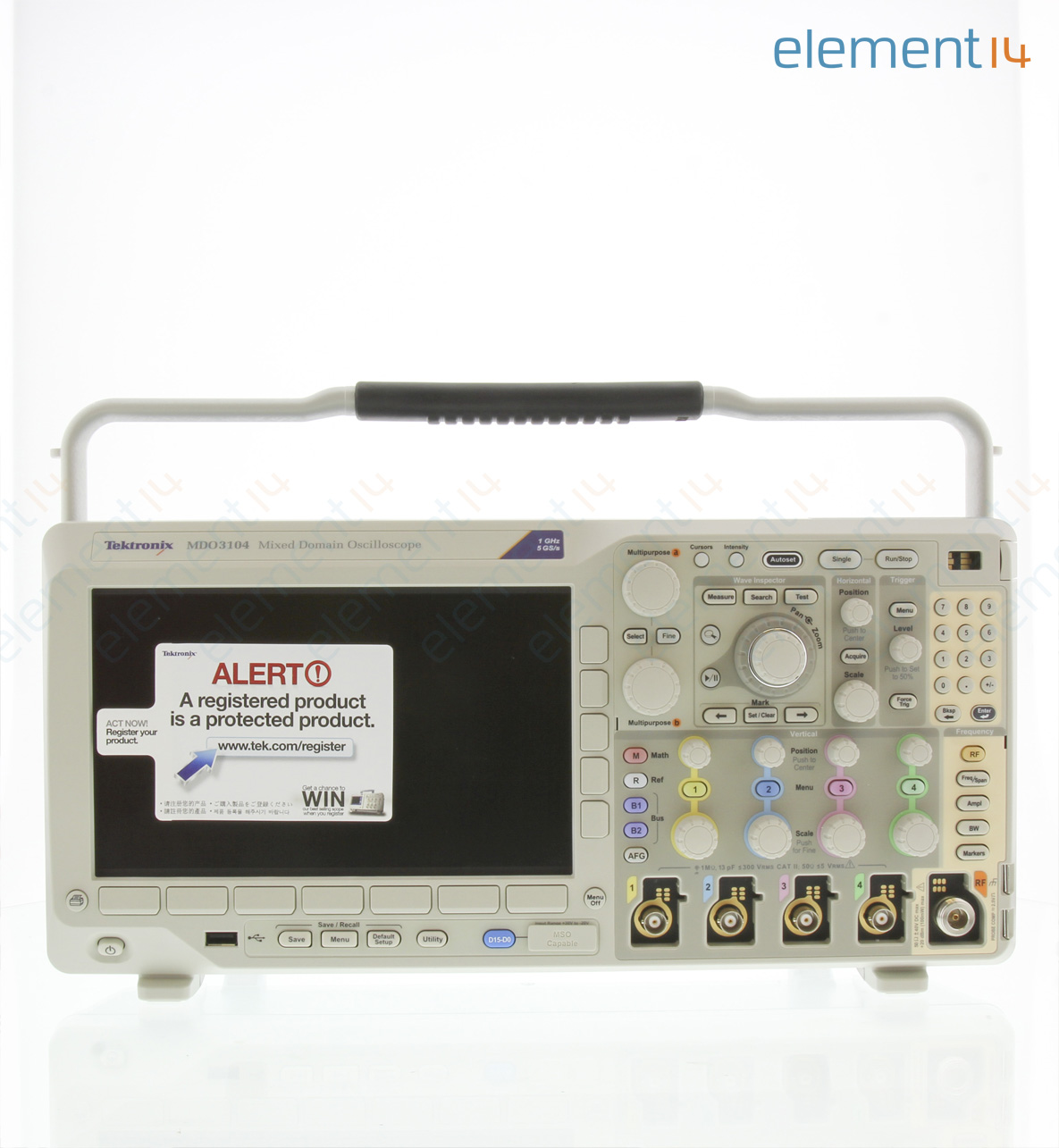

TEKTRONIX  MDO3104  Oscilloscope, MDO3000 Series, 4 Analogue, 1 GHz, 5 GSPS, 10 Mpts, 400 ps


Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Newark Part No.: 29X1623
  • Manufacturer Part No MDO3104

Product Overview

While the MDO3000 Series Mixed Domain Oscilloscope features other built-in instruments, it is first and foremost an oscilloscope. And a versatile one at that. The MDO3104 is packed with timesaving tools to help you discover, capture, search and analyze problems in your design faster than ever. While you may not know what the future holds, you can rest easy knowing your oscilloscope is ready for it. The MDO3104 is fully upgradeable, giving you the ability to add instruments and upgrade bandwidth as your test needs evolve. It’s the scope you need today that’s ready for tomorrow. They come with a built-in spectrum analyzer, featuring an independent RF acquisition system for the most accurate RF measurements, you can use one instrument as an oscilloscope and spectrum analyzer without compromising on performance.
  • Dedicated front panel controls enable easy zoom and navigation through 10 Mpoint records
  • 250,000 waveforms per second acquisition rate
  • Built-in spectrum and protocol analyzer
  • Built in 4-digit voltmeter with AC+DC RMS, AC RMS, and DC measurements
  • Built-in logic analyzer with 16 digital channels
  • Integrated, upgradable arbitrary / function generator
  • Serial and parallel bus triggering and analysis
  • FastAcq™ high-speed waveform capture rate finds elusive signal anomalies quickly
  • Wave Inspector® Controls provide easy navigation and automated search of waveform data
  • 33 automated measurements and waveform histograms for simplified waveform analysis
  • Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 9.2 lb. (4.2 kg)
  • Front and rear USB host ports enable easy transfer of screen shots, settings, and waveform data
  • A video port on the instrument allows the display to be exported to an external monitor or projector
  • The standard 10/100 Ethernet port on the rear of the instrument enables easy connection to networks


Test & Measurement; System Monitoring; Maintenance & Repair; Signal Processing
  • Product Range

  • Back to top

    Product Specifications, Documents & More

    • Bandwidth: 1GHz
    • Calculated Rise Time: 400ps
    • Display Memory Depth: 10 Mpts
    • Input Impedance: 1Mohm
    • Kit Contents: One 1GHz TPP1000 Passive Probe Per Channel (10:1), OpenChoice Desktop Software, N-to-BNC Adapter, Accessory Bag, Calibration Certificate, Power Cord, Documentation CD
    • Plug Type: US
    • Product Range: MDO3000 Series
    • SVHC: To Be Advised
    • Sampling Rate: 5GSPS
    • Scope Channels: 4 Analogue
    • Scope Display Type: WVGA LCD Color
    • Scope Type: Bench
    • Supply Voltage Max: 264VAC
    • Supply Voltage Min: 90VAC

    Find similar products  grouped by common attribute

    View this product in our online catalog

    This product also features on the following pages and catalog editions:

    •  132/2169


    Availability:  25

    • 25 in stock for same day shipping
    Check stock and lead times
      More stock available week commencing 1/11/16

    Price for: Each 1

    Minimum order quantity: 1

    Order multiple quantity: 1

    Price: $14,200.00 $14200



    Quantity List Price
    1+ $14,200.00
