TE CONNECTIVITY / RAYCHEM  MINISMDC020F-2  FUSE, PTC RESET, 30V, 200mA, 1812

TE CONNECTIVITY / RAYCHEM MINISMDC020F-2

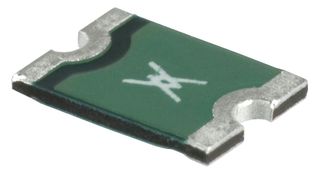

Image is for illustrative purposes only. Please refer to product description.

Product Overview


The MINISMDC020F-2 from TE Connectivity is a surface mount PolySwitch resettable device in 45mm x 32mm size. Its smaller size helps to save board space and cost. It optimizes design flexibility and compatible with high volume electronics assembly.
  • UL, CSA and TUV approved
  • Fast time to trip
  • Hold current of 0.2A at room temperature
  • Maximum voltage of 30V
  • Trip current of 0.4A at room temperature
  • Maximum current of 10A
  • Maximum resistance of 3.3ohm (post trip)
  • Maximum time to trip is 0.02sec
  • Maximum power dissipation of 0.8W
  • Operating temperature range from -40°C to 85°C

Applications

Safety; Consumer Electronics; Portable Devices; Multimedia; Automotive; Industrial
This device is intended for protection against overcurrent or overtemperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated.
