LITTELFUSE  MICROSMD005F-2  PPTC Resettable Fuse, SMD, PolySwitch microSMD Series, 50 mA, 150 mA, 30 VDC, -40 °C

LITTELFUSE MICROSMD005F-2
Technical Data Sheet (303.08KB) EN See all Technical Docs

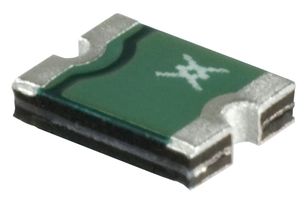

The actual product may differ from image shown

Product Overview

The MICROSMD005F-2 from TE Connectivity is a surface mount PolySwitch resettable device in 32mm x 25mm size. Its smaller size helps to save board space and cost. It optimizes design flexibility and compatible with high volume electronics assembly.
  • UL, CSA and TUV approved
  • Fast time to trip
  • Hold current of 0.05A at room temperature
  • Maximum voltage of 30V
  • Trip current of 0.15A at room temperature
  • Maximum current of 10A
  • Maximum resistance of 50 ohm (post trip)
  • Maximum time to trip is 1.5sec
  • Maximum power dissipation of 1W
  • Operating temperature range from -40°C to 85°C
This device is intended for protection against overcurrent or overtemperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated.
Operation in circuits with a large inductance can generate circuit voltage (Ldi/dt) above rated voltage of device.



Product Information

Thermistor Mounting:
SMD
Product Range:
PolySwitch microSMD Series
Holding Current:
50mA
Tripping Current:
150mA
Voltage Rating:
30VDC
Operating Temperature Min:
-40°C
Operating Temperature Max:
85°C
Automotive Qualifications Standard:
-
Carrying Current Max:
10 A
Series:
microSMD
Initial Resistance Max:
50 ohm
SVHC:
To Be Advised
PTC Fuse Case Style:
1210 [3225 Metric]
Operating Voltage:
30 V
