RAYCHEM - TE CONNECTIVITY  CWT-9002  TERMINAL, SOLDER SLEEVE, 2.7MM, RED

RAYCHEM - TE CONNECTIVITY CWT-9002
Manufacturer Part No:
CWT-9002
Newark Part No.:
09J3984
Product Range
CWT-900 Series
Technical Datasheet:
See all Technical Docs

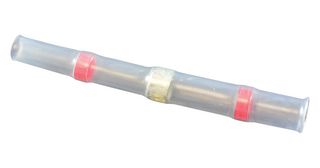

The actual product may differ from image shown

Product Overview

The CWT-9002 is an Open Barrel Splice provides electrical termination in a wide variety of interconnect applications. The 470037-000 SolderSleeve™ one-step terminator capabilities include terminating wires to component terminals, ground wires to cable shields, terminating coaxial cable and wire-to-wire splicing. A precisely engineered, fluxed solder preform within the heat-shrinkable thermoplastic sleeve provides a completely soldered, strain-relieved, encapsulated termination. The one-piece design of one-step terminators simplifies installation, while their transparent insulation sleeves make inspection easy.
  • One-piece design
  • M83519/1 and M83519/2 MIL SPEC approved
  • Small size and lightweight
  • Controlled soldering process



Product Information

Connector Type:
Solder Sleeve
Product Range:
CWT-900 Series
Wire Gauge:
-
Insulator Colour:
Red
Insulator Material:
Polyolefin
RoHS Compliant:
No
Contact Plating:
Tin Plated Contacts
Operating Temperature Min:
-55
Contact Material:
Copper
Operating Temperature Max:
125
Stud/Tab Size:
2.7mm
Termination Method:
Solder
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Maintenance & Repair
  • Commercial
  • Defence, Military & Aerospace
  • Automotive

Legislation and Environmental

RoHS Compliant:
No
