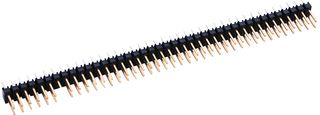

TE CONNECTIVITY / AMP - 9-146257-0 - BOARD-BOARD CONN, HEADER, 80WAY, 2ROW

TE CONNECTIVITY / AMP9-146257-0
Image is for illustrative purposes only.
Please refer to product description
TE CONNECTIVITY / AMP
Manufacturer:
TE CONNECTIVITY / AMP
Newark Part Number:
58K8697
Manufacturer Part No:
9-146257-0

Technical Data Sheet (269.18KB) EN
Technical Data Sheet (269.18KB) EN

Product Information
  • BOARD-BOARD CONN, HEADER, 80WAY, 2ROW
  • Series: AMPMODU Mod II
  • Pitch Spacing: 2.54mm
  • No. of Rows: 2
  • No. of Contacts: 80
  • Gender: Header
  • Contact Termination: Through Hole Vertical
  • Contact Plating: Gold
  • Contact Material: Phosphor Bronze
  • RoHS Compliant: Yes

Show Substitutes

Show Accessories

Find Similar Products grouped by common attributes View this product in our online or paper catalogue

Catalog Page 746

Catalog Page/Catalog Number:

746 / 130

745 / 129

747 / 128

Product Range Product Range

Availability

479 available to ship today
Check more stock...

Price For: 1 Each

Minimum Order Quantity: 1

Order Multiple Quantity: 1

Price: $5.25

  2. Qty

Price

Qty Price
1  - 99 $5.25
100  - 499 $4.32
500  - 999 $3.42
1000  - 1999 $2.93
2000+  $2.92
Legislation and Environmental
  • RoHS Compliance: Yes
