AMP FROM TE CONNECTIVITY  60249-1  Quick Disconnect Terminal, FASTON 250 Series, 16 AWG, 12 AWG, 3 mm², Female Quick Disconnect

AMP FROM TE CONNECTIVITY 60249-1
Technical Data Sheet (643.95KB) EN See all Technical Docs

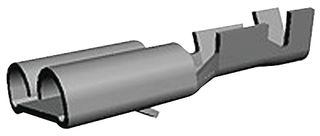

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The 60249-1 is a Disconnect Terminal with unplated brass contact. 1.3 to 3mm² wire cross-section, straight orientation, normal insertion force. 6.35 x 0.81mm tab size and 16 to 12AWG wire size. This disconnect terminal is suitable for wires/cables.
  • Regular wire/cable type
  • F-crimp type
  • Dimple, locking lance mating retention
  • Single connection capacity
  • Normal insertion force



Product Information

Product Range:
FASTON 250 Series
Wire Size AWG Min:
16AWG
Wire Size AWG Max:
12AWG
Conductor Area CSA:
3mm²
Terminal Type:
Female Quick Disconnect
Insulator Colour:
-
Tab Size - Metric:
6.35mm x 0.81mm
Tab Size - Imperial:
0.25" x 0.032"
Insulator Material:
Uninsulated
Terminal Material:
Brass
Contact Plating:
-
Series:
FASTIN-FASTON
Contact Material:
Brass
Stud/Tab Size:
6.35mm x 0.81mm
Termination Method:
Crimp
Connector Type:
Female Disconnect
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
