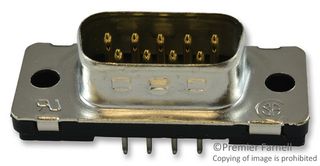

AMP FROM TE CONNECTIVITY  5747871-2  Standard D Sub Connector, AMPLIMITE HD-20 Series, DE, Plug, 9 Contacts, Metal Body, Solder

AMP FROM TE CONNECTIVITY 5747871-2
Technical Data Sheet (387.78KB) EN See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The AMPLIMITE HD-20 series Solder-cup D-sub Connectors with phosphor bronze duplex plated contacts with gold flash on mating end, tin on solder cup with entire contact nickel under-plated, thermoplastic inserts and steel, tin or zinc plated shell.
  • Preloaded duplex-plated solder cup contacts
  • Two-piece UL94V-0 rated plastic insert
  • Anti-solderwicking contact design
  • Intermateable with other subminiature D connectors
  • Available in 9, 15, 25 and 37 position (shell sizes 1-4) plugs and receptacles
  • Easy application without special application tools
  • Shields offer full EMI shielding and ESD insulation
  • Crimped shield termination for low impedance
  • Shield crimp provides strain relief
  • Shields may be post moulded or covered with enclosures



Product Information

Connector Type:
Product Range:
AMPLIMITE HD-20 Series
D Sub Shell Size:
DE
Gender:
Plug
No. of Contacts:
9Contacts
Connector Body Material:
Metal Body
Connector Mounting:
Contact Termination Type:
Solder
Contact Plating:
Gold Plated Contacts
Contact Termination:
Solder
Series:
AMPLIMITE HD-20
Contact Material:
Brass
SVHC:
To Be Advised
Find similar products  grouped by common attribute

Applications

  • Communications & Networking;
  • Computers & Computer Peripherals;
  • Industrial

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
  RoHS Certificate of Compliance
Authorized Distributor

Substitutes

747871-2

Standard D Sub Connector, AMPLIMITE HD-20 Series, DE, Plug, 9 Contacts, Metal Body, Solder

AMP FROM TE CONNECTIVITY

0

Price for: Each

500+ $3.74
