AMP - TE CONNECTIVITY  36149  Ring Tongue Terminal, PIDG Series, 16 AWG, 1.42 mm², M3.5, 6, Nylon (Polyamide)

AMP - TE CONNECTIVITY 36149
See all Technical Docs

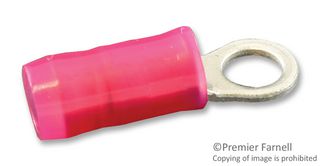

The actual product may differ from image shown

Product Overview

The 36149 is a Ring Tongue Terminal made of copper with tin plated finish. This straight closed barrel class 1/2 terminal features a red nylon insulator, crimp termination and accepts 22 to 16AWG wire.
  • 300V Maximum voltage
  • 105°C Operating temperature rating



Product Information

Product Range:
PIDG Series
Wire Size AWG Max:
16AWG
Conductor Area CSA:
1.42mm²
Stud Size - Metric:
M3.5
Stud Size - Imperial:
6
Insulator Material:
Nylon (Polyamide)
Insulator Colour:
Red
Contact Plating:
Tin
Series:
PIDG
Contact Material:
Copper
Stud/Tab Size:
#6
Termination Method:
Crimp
Connector Type:
Ring Tongue
SVHC:
To Be Advised
Wire Size AWG Min:
22 AWG

Find similar products  grouped by common attribute

Applications

  • Defence, Military & Aerospace;
  • Industrial

Legislation and Environmental

Product Traceability
RoHS Compliant:
Yes
